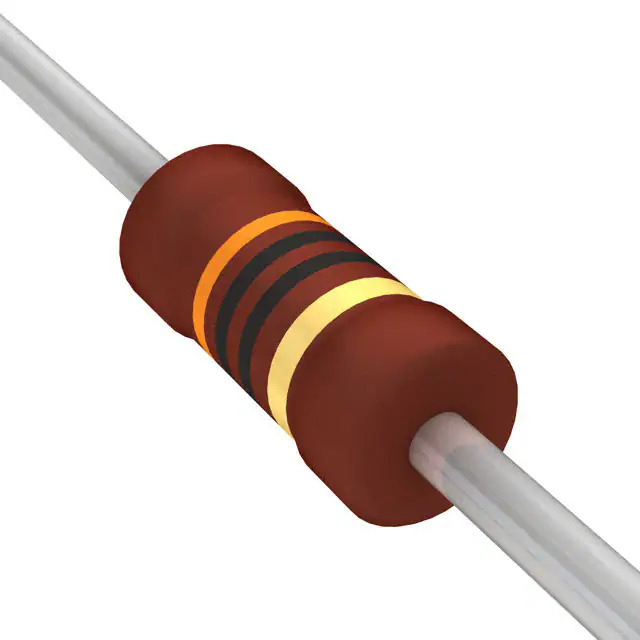

Same model may have multiple batches, images only for reference.
PR03000203009JAC00 Vishay
Same model may have multiple batches, images only for reference.

PR03000203009JAC00

Part No PR03000203009JAC00
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 30 OHM 3W 5% AXIAL
Datasheet
PR03000203009JAC00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr Vishay Beyschlag/Draloric/BC Components
Series PR03
Product Status Active
Resistance 30 Ohms
Tolerance ±5%
Power (Watts) 3W
Composition Metal Film
Features Flame Retardant Coating, Fusible, Safety
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Size / Dimension 0.205" Dia x 0.657" L (5.20mm x 16.70mm)
Height - Seated (Max) -
Number of Terminations 2
Failure Rate -
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Win Source Part Number 1374939-PR03000203009JAC00
Ultra Librarian 3D Model Ultra Librarian PR03000203009JAC00 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components PR03 resistor is a high-quality through-hole resistor designed for a wide range of applications.

  • Temperature Range: -55°C to 155°C
  • Tolerance: ±5%
  • Temperature Coefficient: ±250ppm/°C
  • Resistance: 30 ohms
  • Power Rating: 3W
  • Features: Flame Retardant Coating, Fusible
  • Package: Axial
  • Terminations: 2
  • Mounting Type: Through Hole
  • Product Status: Active
