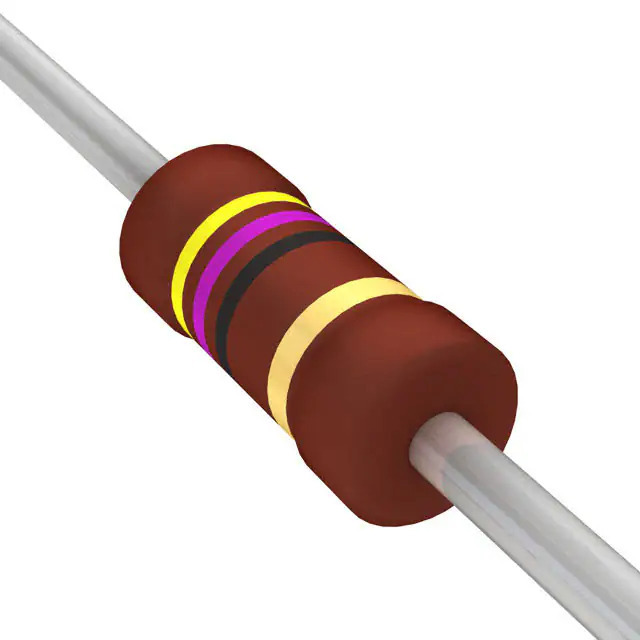

Same model may have multiple batches, images only for reference.

PR02000204709JA100

Name: PR02000204709JA100
Brand: Vishay
SKU: 1374831
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PR02000204709JA100
Manufacturer	Vishay
Catalog	Through Hole Resistors
Description	RES 47 OHM 5% 2W AXIAL
Datasheet	PR02000204709JA100 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors - Through Hole Resistors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	PR02
Product Status	Active
Resistance	47 Ohms
Tolerance	±5%
Power (Watts)	2W
Composition	Metal Film
Features	Automotive AEC-Q200, Flame Retardant Coating, Fusible, Safety
Temperature Coefficient	±250ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	Axial
Supplier Device Package	Axial
Size / Dimension	0.154" Dia x 0.394" L (3.90mm x 10.00mm)
Height - Seated (Max)	-
Number of Terminations	2
Failure Rate	-
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0090
Win Source Part Number	1374831-PR02000204709JA100
Ultra Librarian 3D Model	Ultra Librarian PR02000204709JA100 CAD Model

Description

The 1374831-PR02000204709JA100 is a through-hole resistor from Vishay Beyschlag/Draloric/BC Components. 1374831-PR02000204709JA100 is the product and Vishay Beyschlag/Draloric/BC Components is the manufacturer.

Series: PR02
Package: Axial
Resistance: 47Ω
Power Rating: 2W
Tolerance: ±5%
Temperature Coefficient: ±250ppm/°C
Application: Automotive Electronics, AEC-Q200 Compliant
Features: Flame Retardant, Fusible
Operating Temperature: -55°C to 155°C
REACH: Compliant
ECCN: EAR99
