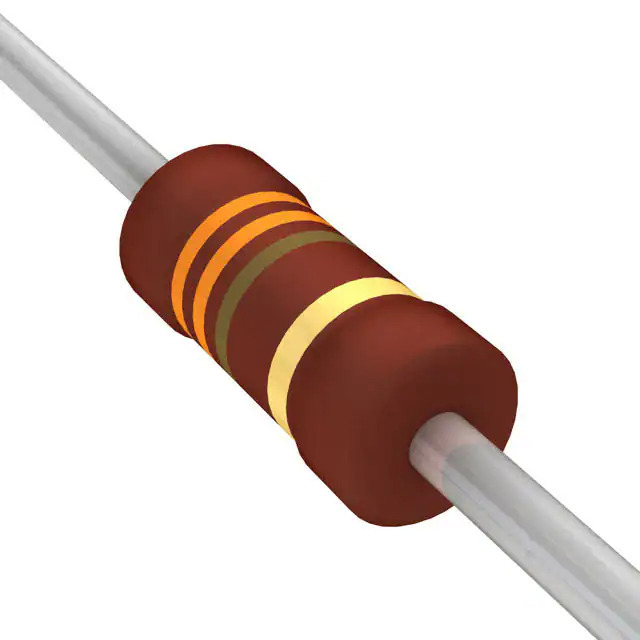

PR01000103300JA100 Vishay
Same model may have multiple batches, images only for reference.

PR01000103300JA100

Part No PR01000103300JA100
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 330 OHM 5% 1W AXIAL
Datasheet
PR01000103300JA100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr Vishay Beyschlag/Draloric/BC Components
Series PR01
Product Status Active
Resistance 330 Ohms
Tolerance ±5%
Power (Watts) 1W
Composition Metal Film
Features Automotive AEC-Q200, Flame Retardant Coating, Fusible, Safety
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Size / Dimension 0.098" Dia x 0.256" L (2.50mm x 6.50mm)
Height - Seated (Max) -
Number of Terminations 2
Failure Rate -
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Win Source Part Number 1374848-PR01000103300JA100
Ultra Librarian 3D Model Ultra Librarian PR01000103300JA100 CAD Model

Description

The PR01 is a through-hole resistor with a resistance of 330 Ohms and a power rating of 1W. It has a tolerance of ±5% and a temperature coefficient of ±250ppm/°C. This resistor is part of the PR01 series manufactured by Vishay Beyschlag/Draloric/BC Components.

  • Series: PR01
  • Mounting Type: Through Hole
  • Resistance: 330 Ohms
  • Power Rating: 1W
  • Tolerance: ±5%
  • Temperature Coefficient: ±250ppm/°C
  • Features: Automotive AEC-Q200 Compliance, Flame Retardant Coating, Fusible, Safety
  • Package / Case: Axial
  • Supplier Device Package: Axial
  • Diameter: 0.098"
  • Length: 0.256"
  • Operating Temperature: -55°C to 155°C
  • Product Status: Active
