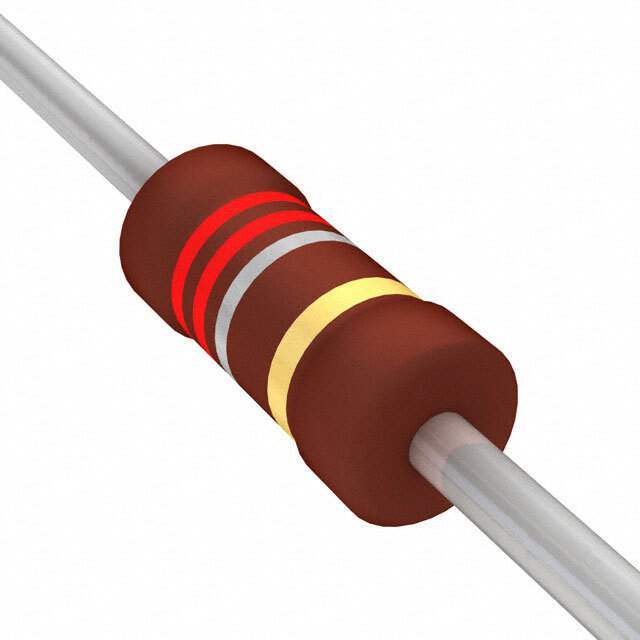

Same model may have multiple batches, images only for reference.
PR01000102207JA100 Vishay
Same model may have multiple batches, images only for reference.

PR01000102207JA100

Part No PR01000102207JA100
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 0.22 OHM 5% 0.6W AXIAL
Datasheet
PR01000102207JA100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1307640-PR01000102207JA100
Manufacturer Vishay
Category Resistors>Through Hole Resistors
Packaging  Cut Tape (CT) Tape & Box (TB)
Part Status Active
Resistance (Ohms) 220 mOhms
Tolerance (+ or -) ±5%
Power (Watts) 0.6W
Temperature Coefficient ±250ppm/°C
Operating Temperature -55°C ~ 200°C
Size / Dimension 0.098" Dia x 0.256" L (2.50mm x 6.50mm)
Ultra Librarian 3D Model Ultra Librarian PR01000102207JA100 CAD Model

Description

A homogeneous film of metal alloy is deposited on a high grade ceramic body. After a helical groove has been cut in the resistive layer, tinned connecting wires of electrolytic copper or copper-clad iron are welded to the end-caps. The resistors are coated with a red, non-flammable lacquer which provides electrical, mechanical and climatic protection. This coating is not resistant to aggressive fluxes and cleaning solvents. The encapsulation is resistant to all cleaning solvents in accordance with IEC 60068-2-45.
