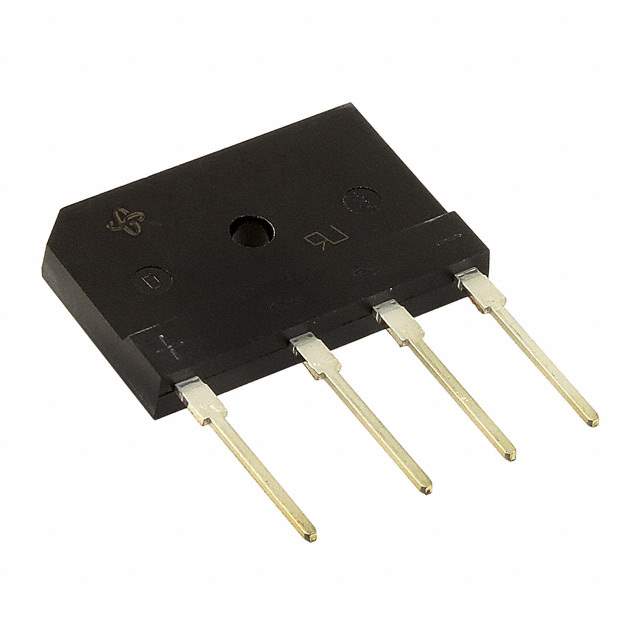

PB3508-E3/45 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 800V
Current - Average Rectified (Io) 35A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 17.5A
Current - Reverse Leakage @ Vr 10μA @ 800V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-SIP, PB
Manufacturer Package isoCINK+ PB
Win Source Part Number 1235380-PB3508-E3/45
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Family Name PB3508
Introduction Date September 25, 2009
ECCN EAR99
Halogen Free Unknown
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian PB3508-E3/45 CAD Model

Description

The PB3508-E3/45 is a single-phase diode from Vishay Semiconductor Diodes Division.

  • Manufacturer: Vishay Semiconductor Diodes Division
  • Type: Single-Phase Diode
  • Peak Reverse Voltage: 800V
  • Forward Voltage: 1.1V @ 17.5A
  • Current Rating: 35A
  • Reverse Leakage Current: 10μA @ 800V
  • Package: 4-SIP, PB
  • RoHS Compliant: Yes
  • Applications: Power supplies, inverters, and welding equipment
