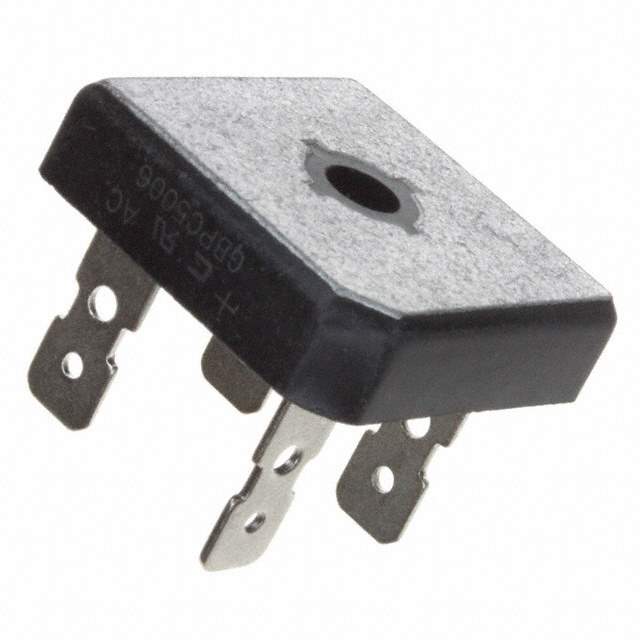

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1000V
Current - Average Rectified (Io) 35A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 17.5A
Current - Reverse Leakage @ Vr 10μA @ 1000V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting QC Terminal
Package 4-Square, GBPC
Manufacturer Package GBPC
Win Source Part Number 775006-GBPC3510-G
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Family Name GBPC3510
Introduction Date March 22, 2007
ECCN EAR99
Country of Origin Taiwan
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian GBPC3510-G CAD Model

Description

The Comchip Technology 775006-GBPC3510-G is a single-phase standard diode that is suitable for use in various electronic devices.

  • Current average rectified: 35A
  • Voltage peak reverse: 1000V
  • Package: 4-square, GBPC
  • Mounting: QC terminal
  • Halogen-free: not compliant
