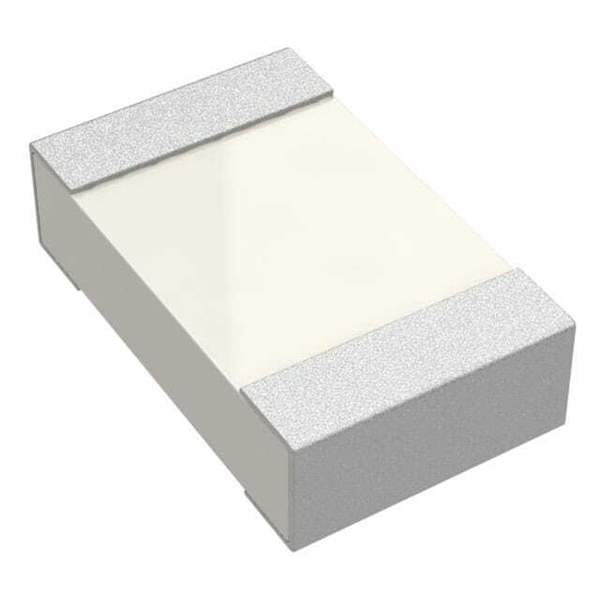

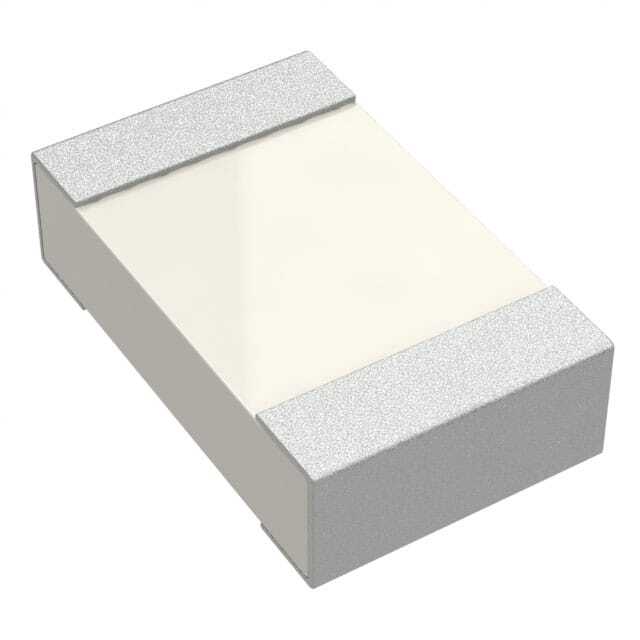

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay
Series *
Package Tape & Reel
Product Status Active
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1086229-P1206E2002BNT
Ultra Librarian 3D Model Ultra Librarian P1206E2002BNT CAD Model

Description

The 1086229-P1206E2002BNT is a chip resistor designed for surface mount applications. 1086229-P1206E2002BNT is a chip resistor.

  • Resistance: 20 kΩ
  • Tolerance: ±1%
  • Power: 1/4W
  • Temperature Coefficient: ±50ppm/°C
  • Package: 1206 (3216 Metric)
  • Application: General-purpose applications
