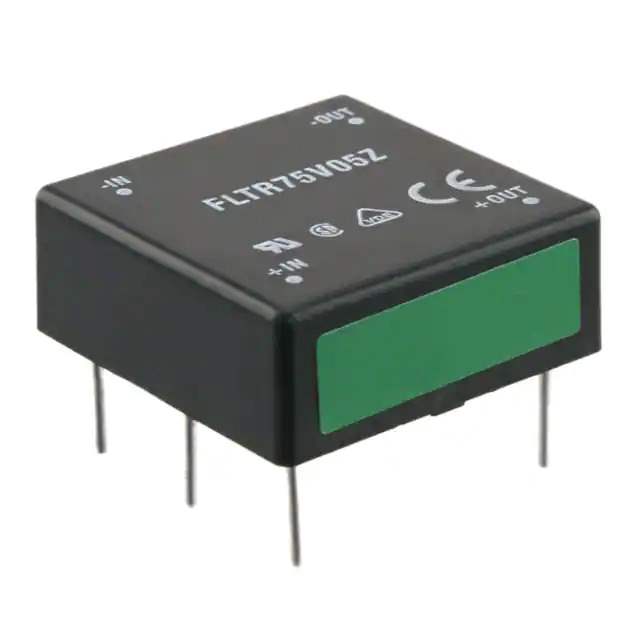

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters - Power Line Filter Modules
Mfr ABB Power Electronics Inc.
Series FLT
Package Tray
Product Status Obsolete
Filter Type Single Phase
Configuration Two Stage
Voltage - Rated DC 75V
Current 5 A
Applications General Purpose
Temperature Range - Operating -40°C ~ 100°C
Mounting Type Through Hole
Termination Style PC Pins
Standard Package 224
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.9860
Win Source Part Number 1337434-FLTR75V05
Ultra Librarian 3D Model Ultra Librarian FLTR75V05 CAD Model

Description

The FLT series power line filter module is designed for general-purpose applications manufactured by ABB Power Electronics Inc.

  • Configuration: Two-Stage
  • Filter Type: Single-Phase
  • Maximum Voltage: 75V DC
  • Current Rating: 5A
  • Termination: PC Pins
  • Mounting: Through Hole
  • Operating Temperature: -40°C to 100°C
  • Package: Tray
  • Standard Package: 224 Filters
  • ECCN: EAR99
  • REACH: Unaffected
  • Status: Obsolete
  • RoHS Compliant: Non-Compliant
