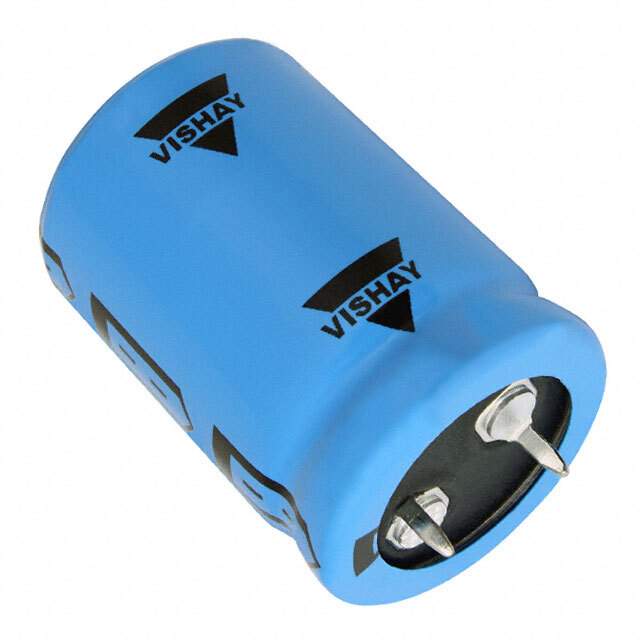

Same model may have multiple batches, images only for reference.

MAL225631682E3

Name: MAL225631682E3
Brand: Vishay
SKU: 1034917
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MAL225631682E3
Manufacturer	Vishay
Catalog	Aluminum Capacitors
Description	CAP ALUM 6800UF 20% 50V SNAP / 6800 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 68mOhm 2000 Hrs @ 105°C
Datasheet	MAL225631682E3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	256 PMG-SI
Package	Bulk
Capacitance	6800 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	68mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Applications	General Purpose
Ripple Current @ High Frequency	3.504 A @ 10 kHz
Lead Spacing	0.394" (10.00mm)
Dimension	0.984" Dia (25.00mm)
Height - Seated (Max)	1.654" (42.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Other Names	4648PHBK
Standard Package	66
Win Source Part Number	1034917-MAL225631682E3
Ultra Librarian 3D Model	Ultra Librarian MAL225631682E3 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components 256 PMG-SI series aluminum electrolytic capacitor is a high-quality and reliable component that is suitable for general-purpose applications.

Capacitance: 6800 µF
Voltage Rating: 50 V
ESR (Equivalent Series Resistance): 68mOhm
Lifetime: 2000 hours @ 105°C
Mounting Type: Through-Hole
Package/Case: Radial, Can - Snap-In
Dimensions: 0.984" Dia (25.00mm)
Operating Temperature Range: -40°C to 105°C
