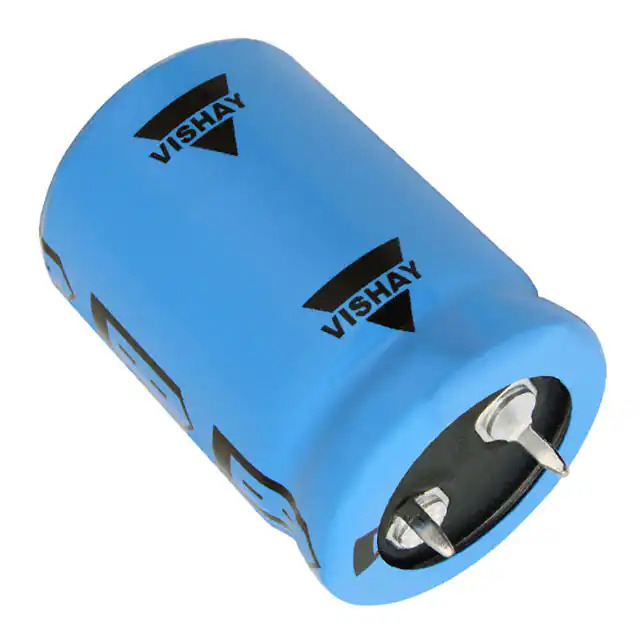

Same model may have multiple batches, images only for reference.

MAL225620472E3

Name: MAL225620472E3
Brand: Vishay
SKU: 1360694
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MAL225620472E3
Manufacturer	Vishay
Catalog	Aluminum Capacitors
Description	CAP ALUM 4700UF 20% 35V SNAP / 4700 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 113mOhm 2000 Hrs @ 105°C
Datasheet	MAL225620472E3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	256 PMG-SI
Package	Bulk
Product Status	Active
Capacitance	4700 µF
Tolerance	±20%
Voltage - Rated	35 V
ESR (Equivalent Series Resistance)	113mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	-
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	1.956 A @ 10 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.866" Dia (22.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1360694-MAL225620472E3
Ultra Librarian 3D Model	Ultra Librarian MAL225620472E3 CAD Model

Description

The MAL225620472E3 is an aluminum electrolytic capacitor from Vishay Beyschlag/Draloric/BC Components.

Capacitance: 4700µF
Voltage Rating: 35V
Tolerance: ±20%
ESR: 113mOhm
Mounting Type: Through Hole
Package / Case: Radial, Can - Snap-In
Lifetime: 2000 Hours @ 105°C
Operating Temperature: -40°C to 105°C
