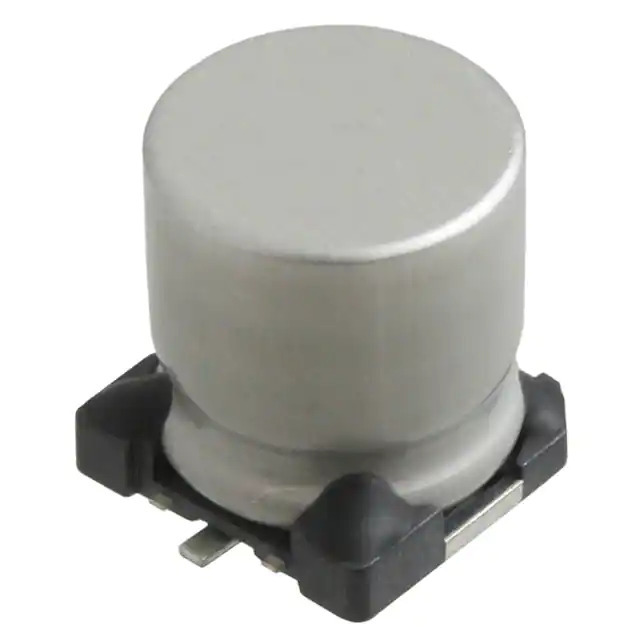

Same model may have multiple batches, images only for reference.

MAL215097502E3

Name: MAL215097502E3
Brand: Vishay
SKU: 1360386
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MAL215097502E3
Manufacturer	Vishay
Catalog	Aluminum Capacitors
Description	CAP ALUM 680UF 20% 16V SMD / 680 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C
Datasheet	MAL215097502E3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	150 CRZ
Package	Tape & Reel
Product Status	Active
Capacitance	680 µF
Tolerance	±20%
Voltage - Rated	16 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	595 mA @ 100 Hz
Impedance	100 mOhms
Lead Spacing	-
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.669" (17.00mm)
Surface Mount Land Size	0.394" L x 0.394" W (10.00mm x 10.00mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360386-MAL215097502E3
Ultra Librarian 3D Model	Ultra Librarian MAL215097502E3 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components 150 CRZ series capacitor is a high-quality aluminum electrolytic capacitor designed for automotive applications.

Series: 150 CRZ
Application: Automotive
Capacitance: 680 μF
Voltage Rating: 16 V
Tolerance: ±20%
Ripple Current: 595 mA @ 100 Hz
Lifetime: 3000 hours @ 105°C
Package: Radial, can - SMD
Mounting Type: Surface Mountable
