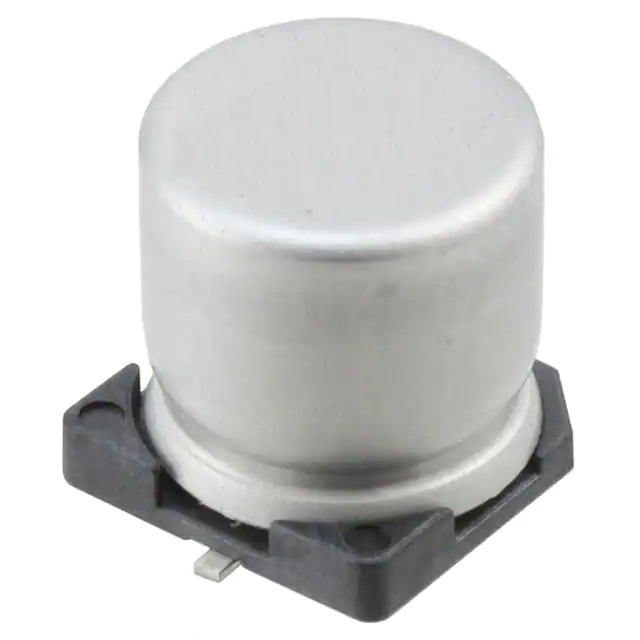

Same model may have multiple batches, images only for reference.
MAL214699104E3 Vishay
Same model may have multiple batches, images only for reference.

MAL214699104E3

Part No MAL214699104E3
Manufacturer Vishay
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 50V SMD / 100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 125°C
Datasheet
MAL214699104E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series 146 CTI
Package Tape & Reel
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 420 mA @ 100 Hz
Ripple Current @ High Frequency 700 mA @ 100 kHz
Impedance 170 mOhms
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size 0.394" L x 0.394" W (10.00mm x 10.00mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360279-MAL214699104E3
Ultra Librarian 3D Model Ultra Librarian MAL214699104E3 CAD Model

Description

The 1360279-MAL214699104E3 is an aluminum electrolytic capacitor from Vishay Beyschlag/Draloric/BC Components.

  • Series: 146 CTI
  • Application: Automotive
  • Capacitance: 100μF
  • Tolerance: ±20%
  • Voltage Rating: 50V
  • Maximum Operating Temperature: 125°C
  • Ripple Current (Low Frequency): 420mA @ 100Hz
  • Ripple Current (High Frequency): 700mA @ 100kHz
  • Package: Radial, Can - SMD
  • Mounting Type: Surface Mount
  • Lifetime: 2000 hours @ 125°C
