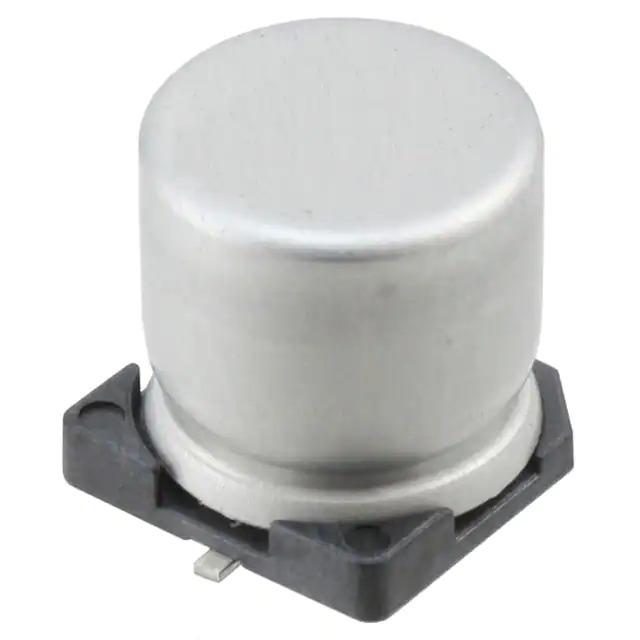

Same model may have multiple batches, images only for reference.
MAL214097602E3 Vishay
Same model may have multiple batches, images only for reference.

MAL214097602E3

Part No MAL214097602E3
Manufacturer Vishay
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 25V SMD / 100 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1500 Hrs @ 125°C
Datasheet
MAL214097602E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series 140 CRH
Package Tape & Reel
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1500 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 126 mA @ 100 Hz
Impedance 400 mOhms
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.335" L x 0.335" W (8.50mm x 8.50mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360375-MAL214097602E3
Ultra Librarian 3D Model Ultra Librarian MAL214097602E3 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components 140 CRH is an aluminum electrolytic capacitor with a capacitance of 100μF and a voltage rating of 25V.

  • Capacitance: 100μF
  • Voltage Rating: 25V
  • Tolerance: ±20%
  • Temperature Range: -55°C to 125°C
  • Ripple Current @ 100Hz: 126mA
  • Lifetime @ 125°C: 1500 hours
  • Application: Automotive
  • Packaging: Tape & Reel
  • Diameter: 0.315" (8.00mm)
  • Height: 0.413" (10.50mm)
  • Mounting Type: Surface Mount
  • Surface Mount Land Size: 0.335" L x 0.335" W (8.50mm x 8.50mm)
  • REACH: Unaffected
  • ECCN: EAR99
