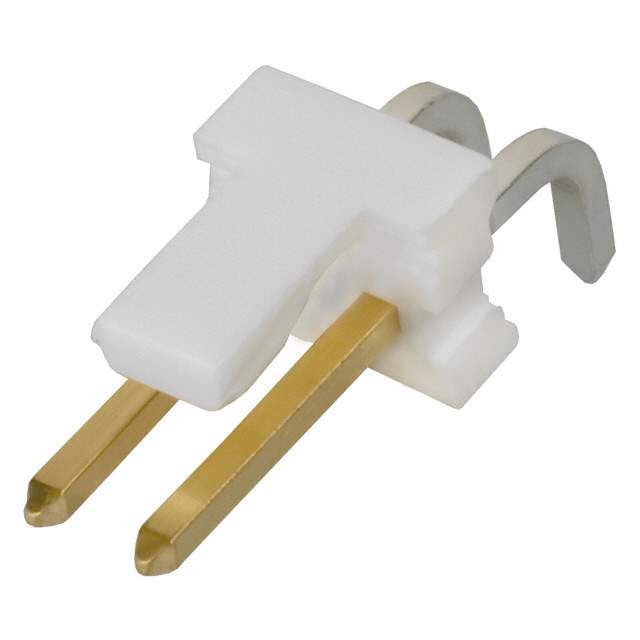

3-641210-2 Real Image
Same model may have multiple batches, images only for reference.

3-641210-2

Part No 3-641210-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 2POS 3.96MM / Connector Header Through Hole, Right Angle 2 position 0.156" (3.96mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.400" (10.16mm)
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.300" (7.62mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Glass Filled
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600VAC
Applications General Purpose, Industrial
Base Product Number 641210
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 36412102,A31688
Standard Package 2,000
Win Source Part Number 1334406-3-641210-2
Ultra Librarian 3D Model Ultra Librarian 3-641210-2 CAD Model

Description

This TE Connectivity AMP Connectors header connector is designed for board-to-cable/wire applications.

  • Positions: 2
  • Rows: one
  • Positions Loaded: all
  • Connector Type: header
  • Contact Type: male pin
  • Contact Material: copper alloy
  • Pitch: 0.156" (3.96mm)
  • Shrouded: 1 wall
  • Mating Contact Finish: gold
  • Mating Contact Finish Thickness: 30.0μin (0.76μm)
  • Post Contact Finish: tin
  • Insulation Material: thermoplastic, glass filled
  • Insulation Color: natural
  • Voltage Rating: 600VAC
  • Temperature Range: -55°C ~ 105°C
  • RoHS Compliant: true
  • Standard Package: 2,000
  • Mounting: through hole, right angle
