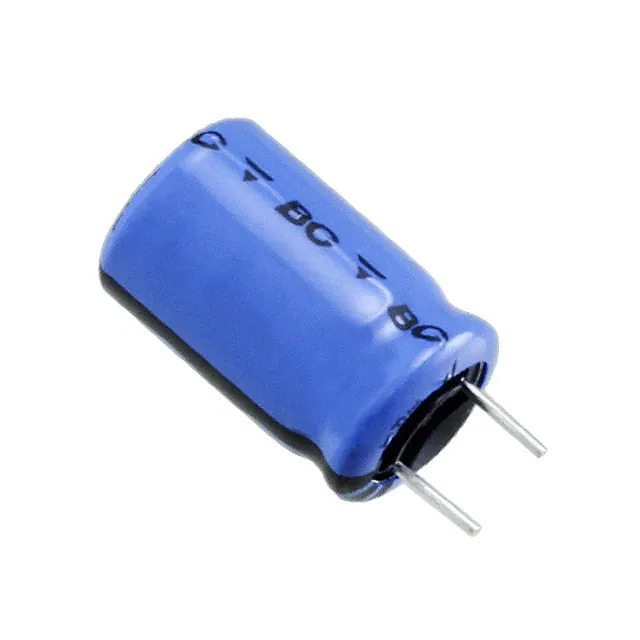

Same model may have multiple batches, images only for reference.

MAL213668101E3

Name: MAL213668101E3
Brand: Vishay
SKU: 1360792
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	MAL213668101E3
Manufacturer	Vishay
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 63V RADIAL / 100 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C
Datasheet	MAL213668101E3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	136 RVI
Package	Bulk
Product Status	Active
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	63 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	6000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	203 mA @ 100 Hz
Impedance	190 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.689" (17.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360792-MAL213668101E3
Ultra Librarian 3D Model	Ultra Librarian MAL213668101E3 CAD Model

Description

The 1360792-MAL213668101E3 is a radial, can-type aluminum electrolytic capacitor from Vishay Beyschlag/Draloric/BC Components.

Capacitance: 100 µF
Tolerance: ±20%
Rated Voltage: 63 V
Ripple Current (Low Frequency): 203 mA @ 100 Hz
Application: General-Purpose
Lead Spacing: 5.00mm
Diameter: 10.00mm
Height: 17.50mm
Mounting: Through Hole
Lifetime: 6000 hours @ 105°C
RoHS: Compliant
Polarization: Yes
Series: 136 RVI
Product Status: Active
