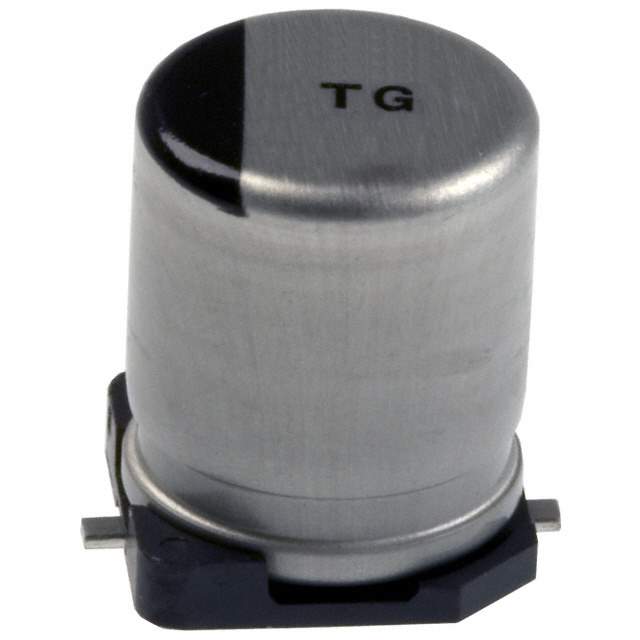

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series TG
Package Tape & Reel
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) 1.3Ohm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 45.5 mA @ 120 Hz
Ripple Current @ High Frequency 70 mA @ 100 kHz
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.402" (10.20mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number EEE-TG
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1340371-EEE-TG2A100P
Ultra Librarian 3D Model Ultra Librarian EEE-TG2A100P CAD Model

Description

The Panasonic Electronic Components TG series aluminum electrolytic capacitor is designed for use in automotive applications.

  • Capacitance: 10 µF
  • Voltage Rating: 100V
  • Tolerance: ±20%
  • ESR: 1.3 Ohm @ 100kHz
  • Polarization: Polarized
  • Package: Radial, Can - SMD
  • Part Number: EEE-TG2A100P
  • Operating Temperature: -40°C to 125°C
  • Lifetime: 2000 hours @ 125°C
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Packaging: Tape and Reel
  • Units per Package: 500
  • AEC-Q200: Rated
