Same model may have multiple batches, images only for reference.

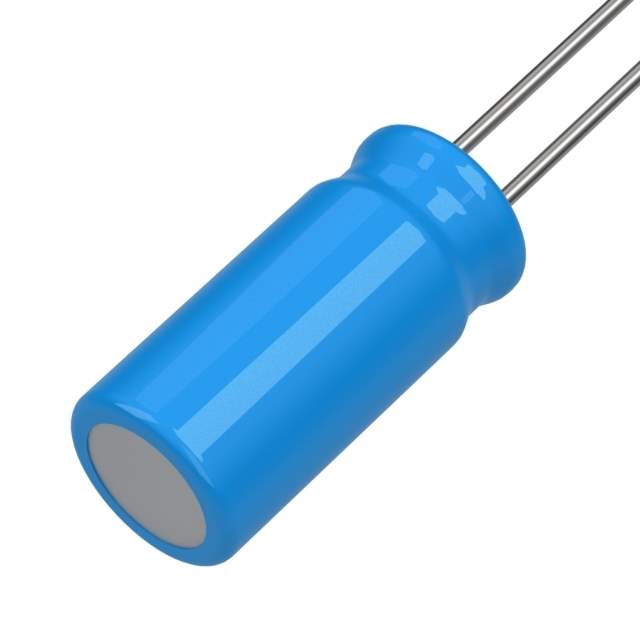

MAL203690004E3 Real Image
Same model may have multiple batches, images only for reference.

MAL203690004E3

Part No MAL203690004E3
Manufacturer Vishay
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 50V RADIAL / 10 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 85°C
Datasheet
MAL203690004E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series 036 RSP
Package Bulk
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 3000 Hrs @ 85°C
Temperature Range - Operating -55°C ~ 85°C
Polarization Polar
Applications Automotive
Ripple Current @ Low Frequency 60 mA @ 100 Hz
Impedance 4.5 Ohms
Lead Spacing 0.098" (2.50mm)
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 1,000
Win Source Part Number 1034379-MAL203690004E3
Ultra Librarian 3D Model Ultra Librarian MAL203690004E3 CAD Model

Description

The MAL203690004E3 is a high-quality aluminum electrolytic capacitor manufactured by Vishay.

  • Application: Automotive
  • Capacitance: 10µF
  • Voltage Rating: 50V
  • Tolerance: ±20%
  • Impedance: 4.5 ohms
  • Maximum Height: 12mm
  • Diameter: 5mm
  • Type: Through-hole
  • Operating Temperature: -55°C to 85°C
