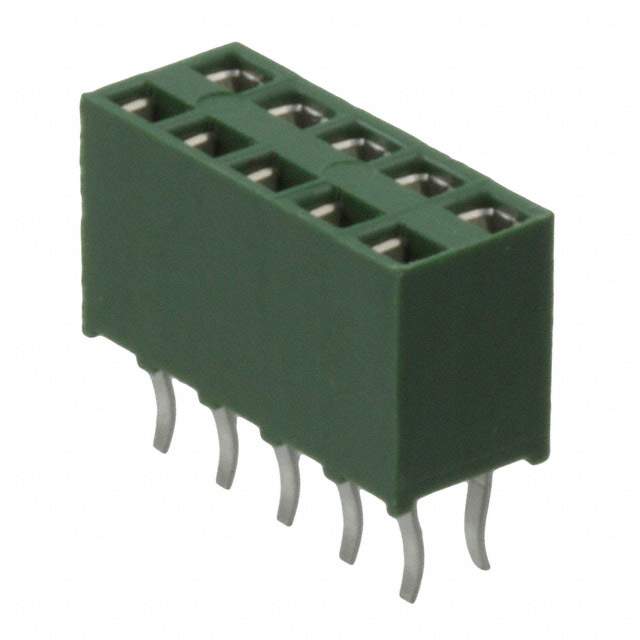

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 10
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Style Through Hole
Termination Kinked Pin, Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 31.5μin (0.80μm)
Insulation Color Green
Insulation Height 0.276" (7.00mm)
Contact Length - Post 0.122" (3.10mm)
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Insulation Material Polyester, Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 98.4μin (2.50μm)
Manufacturer Pack Quantity 144
MSL Level 1 (Unlimited)
Win Source Part Number 1123007-215307-5
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 215307-5 CAD Model

Description

TE Connectivity AMP Connectors' 1123007-215307-5 is a board-to-board connector that has a pitch-mating of 0.100 inches.

  • Pitch-Mating: 0.100 inches
  • Contact Type: Female Socket
  • Termination: Kinked Pin, Solder
  • Contact Shape: Square
  • Package: Tray
  • Number of Rows: 2
  • Positions Loaded: All
  • Contact Material: Phosphor Bronze
  • Contact Finish-Mating: Gold
  • Contact Finish Thickness-Mating: 31.5μin (0.80μm)
  • Contact Finish-Post: Tin
  • Contact Finish Thickness-Post: 98.4μin (2.50μm)
  • Insulation Material: Polyester, Glass-Filled
  • Insulation Color: Green
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 144
