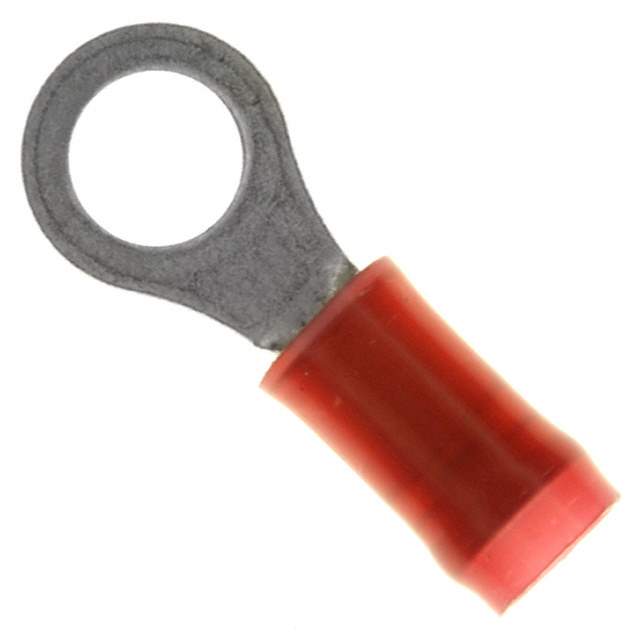

2-36154-2 Real Image
Same model may have multiple batches, images only for reference.

2-36154-2

Part No 2-36154-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN RING CIRC 16-22AWG #10 / Ring Terminal Connector 10 Stud Circular 16-22 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Ring Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Circular
Stud/Tab Size 10 Stud
Thickness 0.031" (0.79mm)
Width - Outer Edges 0.312" (7.92mm)
Length - Overall 0.844" (21.44mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 16-22 AWG
Insulation Insulated
Features Serrated Termination
Color Red
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.105" ~ 0.140" (2.67mm ~ 3.56mm)
Material - Insulation Polyamide (PA), Nylon
Base Product Number 36154
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -405853706-SI,2-36154-2-ND,A28099-ND,2361542,-2-36154-2-SI,A1062TR,A28099,A1062CT,-405853706-SI-ND
Standard Package 5,000
Win Source Part Number 1333599-2-36154-2
Ultra Librarian 3D Model Ultra Librarian 2-36154-2 CAD Model

Description

The TE Connectivity AMP Connectors 1333599-2-36154-2 is a red-colored, circular ring connector with serrated termination.

  • Termination: Crimp
  • Contact Finish: Tin
  • Contact Material: Copper
  • Wire Gauge: 16-22 AWG
  • Insulation Material: Polyamide (PA) and Nylon
  • Overall Length: 0.844 inches (21.44mm)
  • Width: 0.312 inches (7.92mm)
  • Thickness: 0.031 inches (0.79mm)
  • Insulation Diameter: 0.105 inches to 0.140 inches (2.67mm to 3.56mm)
  • Mounting: Free Hanging (In-Line)
  • Stud/Tab Size: 10 Stud
  • RoHS Compliant: Yes
  • Standard Package: 5,000
