Same model may have multiple batches, images only for reference.

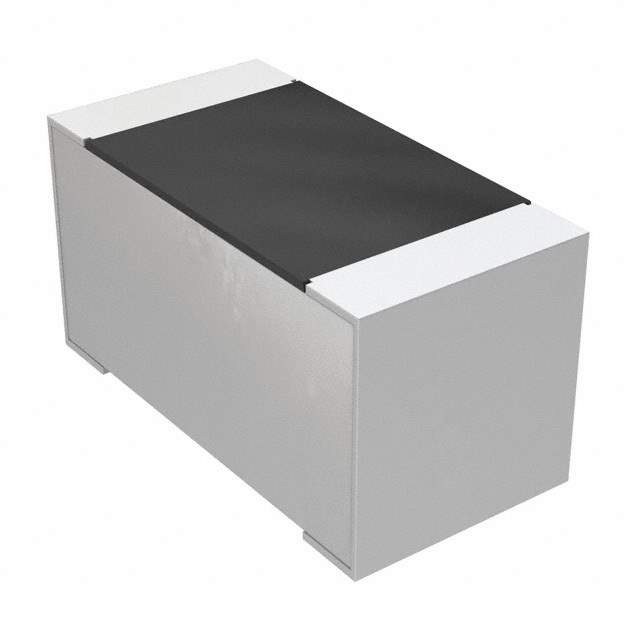

M55342E12B54B9RT5 Real Image
Same model may have multiple batches, images only for reference.

M55342E12B54B9RT5

Part No M55342E12B54B9RT5
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 54.9KOHM 0.1% 1/10W 0603
Datasheet
M55342E12B54B9RT5 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay
Packaging Reel - TR
Status Active
Resistance (Ohms) 54.9k
Tolerance ±0.1%
Power (Watts) 0.1W, 1/10W
Composition Thin Film
Features Military, Non-Inductive
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C to 150°C
Case / Package 0603
Height - Seated (Max) 0.033" (0.84mm)
Number of Terminations 2
Failure Rate R (0.01%)
Win Source Part Number 109716-M55342E12B54B9RT5
Ultra Librarian 3D Model Ultra Librarian M55342E12B54B9RT5 CAD Model

Description

This electronic component is a high popularity product manufactured by Vishay.

  • Type: military, non-inductive resistor
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Failure Rate: R (0.01%)
  • Power: 0.1W, 1/10W
  • Resistance: 54.9k ohms
  • Composition: thin film
  • Terminations: 2
  • Status: active
  • Operating Temperature: -55°C to 150°C
  • Case/Package: 0603
