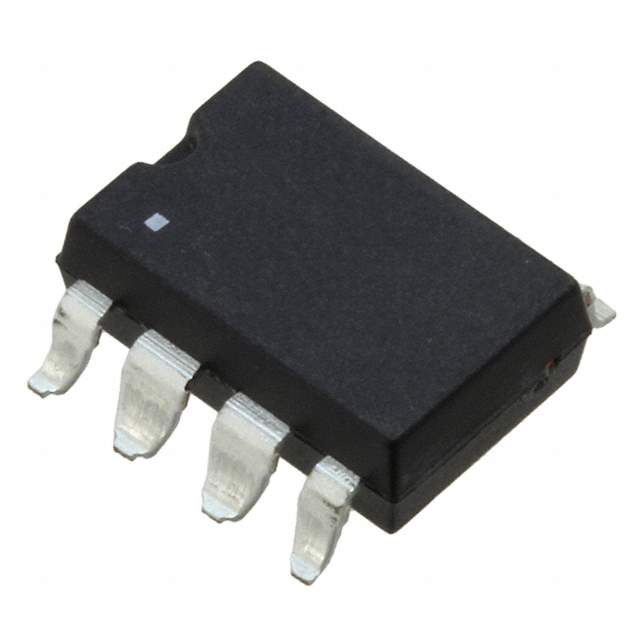

LH1502BAC Real Image
Same model may have multiple batches, images only for reference.

LH1502BAC

Part No LH1502BAC
Manufacturer Vishay
Catalog Solid State Relays
Description SMD-8 SSR DUAL 1 FORM A/B, C
Datasheet
LH1502BAC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Circuit DPST-NO/NC (1 Form A and B)
Output Type AC, DC
Max On Resistance 20 Ohm
Load Current 150mA
Voltage - Input 1.26VDC
Voltage - Load 0 to 350 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 8-SMD
Relay Type Relay
Win Source Part Number 128931-LH1502BAC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LH1502BAC CAD Model

Description

The LH1502BAC is a relay from Vishay that belongs to the relays category. The supply and demand status is limited.

  • Circuit: DPST-NO/NC (1 Form A and B)
  • Output: AC/DC
  • Load Current: 150mA
  • Voltage Load: 0 to 350 V
  • Termination Style: Gull wing
  • Mounting: SMD (SMT)
  • Description: The LH1502BAC is a reliable and efficient relay that can be used in a wide range of electronic applications.
