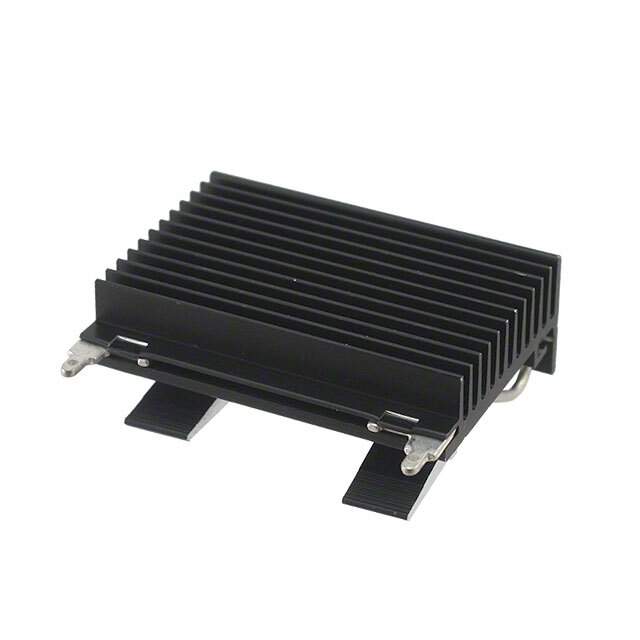

C220-050-2AE Real Image
Same model may have multiple batches, images only for reference.

C220-050-2AE

Part No C220-050-2AE
Manufacturer Ohmite
Catalog Thermal - Heat Sinks
Description HEATSINK AND CLIPS FOR 2 TO-220  /  Heat Sink TO-220 Aluminum Board Level, Vertical
Datasheet
C220-050-2AE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>Thermal - Heat Sinks
Mfr Ohmite
Series C
Package Box
Type Board Level, Vertical
Package Cooled TO-220
Attachment Method 2 Clips and PC Pin
Shape Rectangular, Fins
Length 1.969" (50.00mm)
Width 1.500" (38.10mm)
Fin Height 0.710" (18.03mm)
Material Aluminum
Material Finish Black Anodized
MSL Level Not Applicable
ECCN EAR99
HTSUS 8473.30.5100
Other Names C2200502AE
Standard Package 10
Win Source Part Number 1144997-C220-050-2AE
Ultra Librarian 3D Model Ultra Librarian C220-050-2AE CAD Model

Description

The Ohmite C220-050-2AE model is a board level, vertical type heat sink made of aluminum material.

  • Length: 1.969 inches
  • Width: 1.500 inches
  • Fin Height: 0.710 inches
  • Suitable for: TO-220 package cooled devices
  • Attachment Method: 2 clips and PC pin
  • Package: Box
  • ECCN: EAR99 compliant
  • Material Finish: Black anodized
