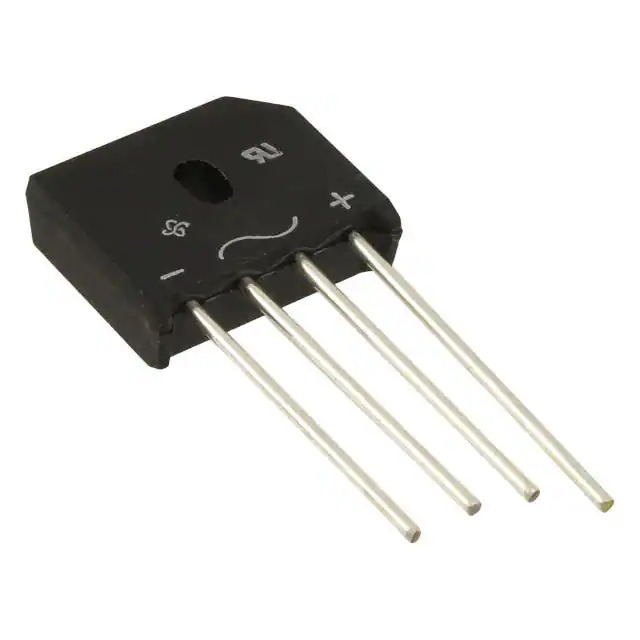

KBU6B-E4/51 Vishay
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Vishay General Semiconductor - Diodes Division
Series -
Package Bulk
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 100 V
Current - Average Rectified (Io) 6 A
Voltage - Forward (Vf) (Max) @ If 1 V @ 6 A
Current - Reverse Leakage @ Vr 5 µA @ 100 V
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, KBU
Supplier Device Package KBU
Base Product Number KBU6
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367963-KBU6B-E4/51
Ultra Librarian 3D Model Ultra Librarian KBU6B-E4/51 CAD Model

Description

The KBU6B-E4/51 is a bridge rectifier diode from Vishay General Semiconductor - Diodes Division.

  • Diode Type: Single Phase
  • Voltage Rating: 100V
  • Average Rectified Current: 6A
  • Forward Voltage: 1V @ 6A
  • Reverse Leakage Current: 5µA @ 100V
  • Mounting Type: Through-Hole
  • Package: 4-SIP, KBU
  • Operating Temperature: -50°C to 150°C
  • Product Status: Active
  • Packaging: Bulk
  • REACH Compliance: Unaffected
  • ECCN: EAR99
