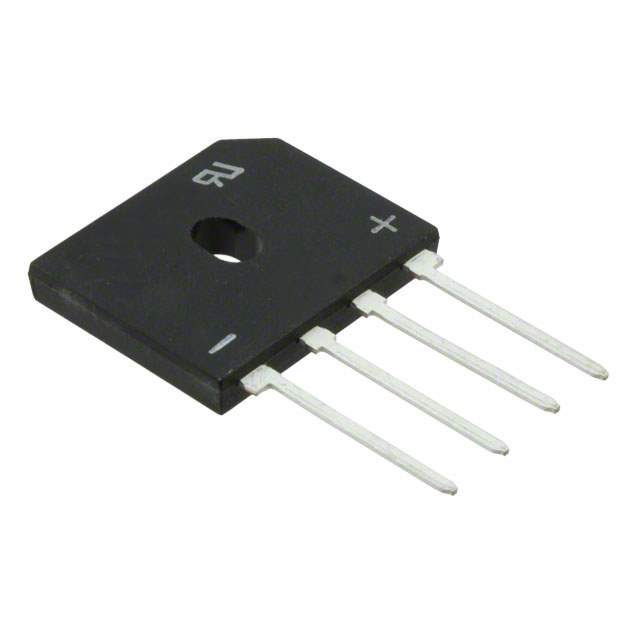

The G3SBA80-E3/51 is a single-phase bridge rectifier manufactured by Vishay. This component converts alternating current (AC) to direct current (DC). Bridge rectifiers are essential components in power supplies and other electronic circuits that require a DC voltage source derived from an AC input.

Applications

• Power Supplies
• Battery Chargers
• AC to DC Converters
• Home Appliances
• Industrial Equipment
• LED Lighting

Features

• High Surge Current Capability
• High Forward Surge Current
• Low Forward Voltage Drop
• Ideal for Printed Circuit Board
• High Case Dielectric Strength
• RoHS Compliant

Benefits

• Provides efficient AC to DC conversion.
• Withstands high surge currents, enhancing reliability.
• Low forward voltage drop minimizes power losses.
• Simplified PCB mounting.
• High dielectric strength provides electrical isolation.
• Environmentally friendly due to RoHS compliance.

Technical Specifications

The G3SBA80-E3/51 has a repetitive peak reverse voltage (Vrrm) of 800V and a forward current (If) of 3A. The operating temperature range is typically -55°C to +150°C. Consult the Vishay datasheet for complete specifications, including surge current ratings and thermal characteristics.
