Same model may have multiple batches, images only for reference.

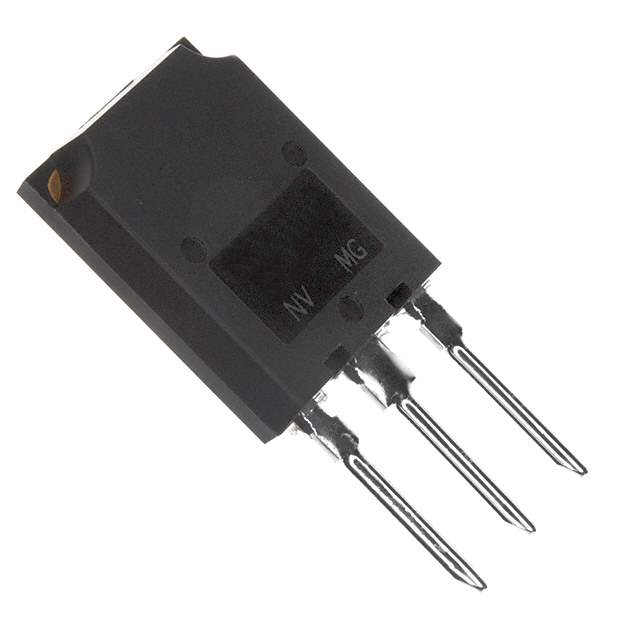

IRFPS37N50A Real Image
Same model may have multiple batches, images only for reference.

IRFPS37N50A

Part No IRFPS37N50A
Manufacturer Vishay
Catalog FETs - Single
Description Power MOSFET(Vdss=500V, Rds(on)max=0.13ohm, Id=36A) | MOSFET N-CH 500V 36A SUPER247
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Siliconix
Packaging Tube
Status Obsolete
Transistor Polarity N-Channel
Technology MOSFET
Vds - Drain-Source Breakdown Voltage 500V
Id - Continuous Drain Current 36A
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Maximum) at Id, Vgs 130mOhm at 22A, 10V
Gate Source Voltage(th) (Maximum) at Id 4V at 250μA
Gate Charge (Qg) (Maximum) at Vgs 180nC at 10V
Gate Source Voltage (Maximum) ±30V
Input Capacitance (Ciss) (Maximum) at Vds 5579pF at 25V
Power Dissipation (Maximum) 446W
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole
Supplier Device Package SUPER-247 (TO-274AA)
Manufacturer Package TO-274AA
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 1187833-IRFPS37N50A
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Power Management
Ultra Librarian 3D Model Ultra Librarian IRFPS37N50A CAD Model

Description

The IRFPS37N50A is an N-channel MOSFET transistor that can handle a continuous drain current of 36A. It has a power dissipation of 446W and a gate-source voltage of ±30V.

  • Continuous Drain Current: 36A
  • Power Dissipation: 446W
  • Gate-Source Voltage: ±30V
  • Maximum Drain-Source Breakdown Voltage: 500V
  • Maximum Gate-Source Voltage: 4V @ 250µA
  • Gate Charge: 180nC @ 10V
  • Input Capacitance: 5579pF @ 25V
  • Package: SUPER-247 (TO-274AA)
  • Mounting Style: Through-Hole
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Package Size: 500
  • Status: Obsolete
