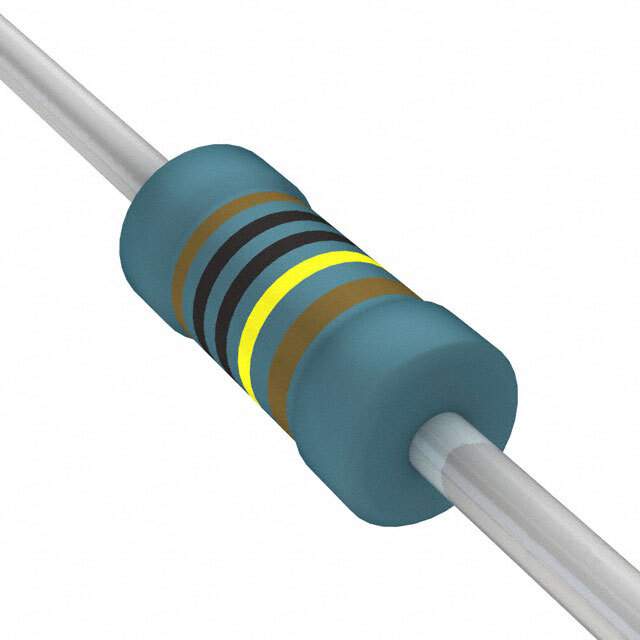

Same model may have multiple batches, images only for reference.

HVR3700001004FR500

Name: HVR3700001004FR500
Brand: Vishay
SKU: 959371
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HVR3700001004FR500
Manufacturer	Vishay
Catalog	Through Hole Resistors
Description	RES 1M OHM 1/2W 1% AXIAL / 1 MOhms ±1% 0.5W, 1/2W Through Hole Resistor Axial Flame Retardant Coating, High Voltage, Pulse Withstanding, Safety Metal Film
Datasheet	HVR3700001004FR500 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Through Hole Resistors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	HVR37
Package	Tape & Reel (TR),Cut Tape (CT)
Resistance	1 mOhms
Tolerance	±1%
Power (Watts)	0.5W, 1/2W
Composition	Metal Film
Features	Flame Retardant Coating, High Voltage, Pulse Withstanding, Safety
Temperature Coefficient	±200ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	Axial
Supplier Device Package	Axial
Dimension	0.157" Dia x 0.394" L (4.00mm x 10.00mm)
Number of Terminations	2
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0090
Other Names	PPCHF1.00MCT,2306 242 61005,5053HV1M000F12AFX,230624261005,PPCHF1.00MTR
Standard Package	5,000
Win Source Part Number	959371-HVR3700001004FR500
Ultra Librarian 3D Model	Ultra Librarian HVR3700001004FR500 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components HVR3700001004FR500 resistor is a through-hole resistor with a tolerance of ±1%.

Tolerance: ±1%
Power: 0.5W
Resistance: 1 mOhms
Features: Flame retardant coated, high voltage, pulse withstanding, and safety
Packaging: Tape & reel (TR) or cut tape (CT)
Alternative Cross-Reference: with other resistors
