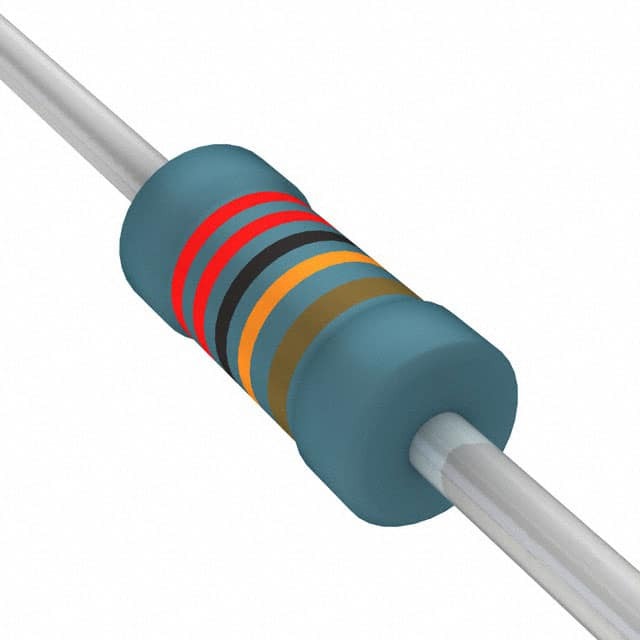

Same model may have multiple batches, images only for reference.

HVR2500002203FR500

Name: HVR2500002203FR500
Brand: Vishay
SKU: 1378603
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HVR2500002203FR500
Manufacturer	Vishay
Catalog	Through Hole Resistors
Description	RES 220K OHM 1/4W 1% AXIAL
Datasheet	HVR2500002203FR500 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors - Through Hole Resistors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	HVR25
Package	Tape & Reel (TR)
Product Status	Active
Resistance	220 kOhms
Tolerance	±1%
Power (Watts)	0.25W, 1/4W
Composition	Metal Film
Features	Flame Retardant Coating, High Voltage, Pulse Withstanding, Safety
Temperature Coefficient	±200ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	Axial
Supplier Device Package	Axial
Size / Dimension	0.098" Dia x 0.256" L (2.50mm x 6.50mm)
Height - Seated (Max)	-
Number of Terminations	2
Failure Rate	-
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0090
Win Source Part Number	1378603-HVR2500002203FR500
Ultra Librarian 3D Model	Ultra Librarian HVR2500002203FR500 CAD Model

Alternative Products

Description

The HVR2500002203FR500 is a high voltage resistor manufactured by Vishay Beyschlag/Draloric/BC Components.

Series: HVR25
Package: Tape and Reel
Resistance: 220 kOhms
Power Rating: 0.25W
Tolerance: ±1%
Temperature Coefficient: ±200ppm/°C
Coating: Flame Retardant
Pulse Withstanding: Yes
Temperature Range: -55°C to 155°C
