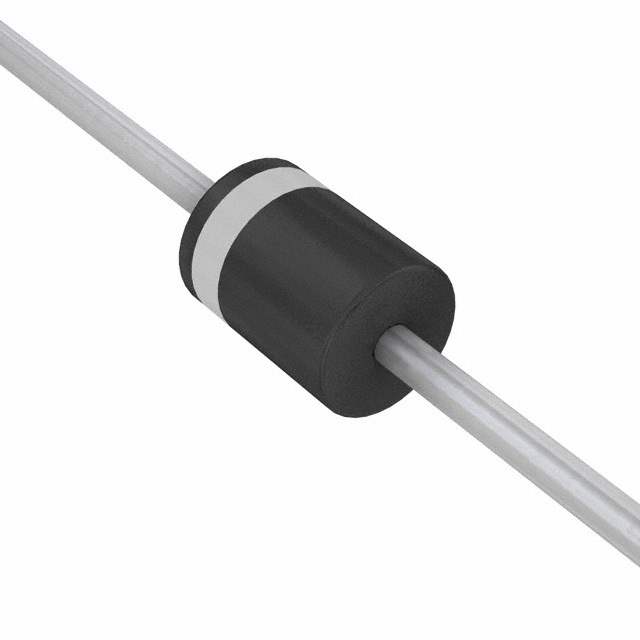

GI822-E3/54 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 5A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 200ns
Current - Reverse Leakage @ Vr 10μA @ 200V
Capacitance @ Vr, F 300pF @ 4V, 1MHz
Mounting Through Hole
Case / Package P600
Operating Temperature - Junction -50°C to 150°C
Win Source Part Number 001358-GI822-E3/54
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian GI822-E3/54 CAD Model

Description

The Vishay GI822-E3/54 is a standard diode.

  • Voltage DC Reverse: 200V
  • Average Rectified Current: 5A
  • Voltage Forward: 1.1V @ 5A
  • Reverse Recovery Time: 200ns
  • Current Reverse Leakage: 10μA @ 200V
  • Capacitance: 300pF @ 4V, 1MHz
  • Package: P600
  • Operating Temperature: -50°C to 150°C
  • Status: Obsolete (EOL), Balanced supply and demand.
  • Applications: Rectification circuits, freewheeling diodes, and reverse polarity protection.
