Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1000V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 4A
Current - Reverse Leakage @ Vr 5μA @ 1000V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-SIP, GBL
Manufacturer Package GBL
Win Source Part Number 774993-GBL10-E3/45
Popularity Medium
Supply and Demand Status Limited
Family Name GBL10
Introduction Date June 18, 1998
ECCN EAR99
Country of Origin China
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian GBL10-E3/45 CAD Model

Description

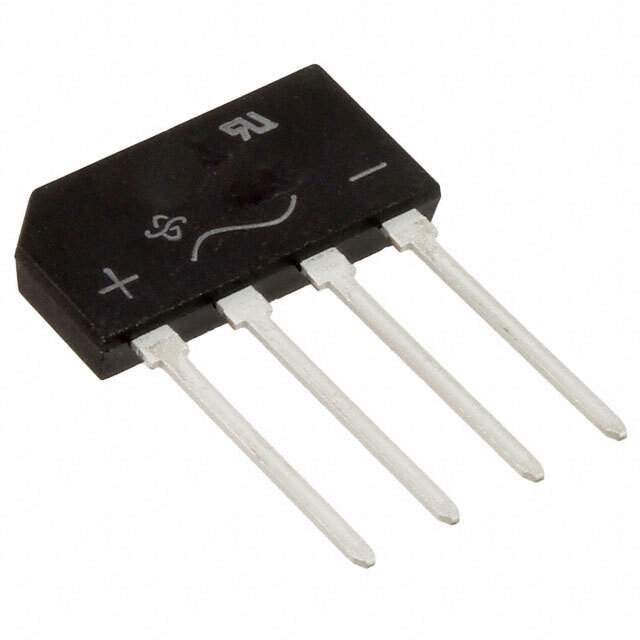

The GBL10-E3/45 is a single-phase diode from Vishay Semiconductor Diodes Division.

  • Package: 4-SIP, GBL
  • Temperature Range: -55°C to 150°C (TJ)
  • Current Average Rectified: 3A
  • Current Reverse Leakage @ Vr: 5μA
  • Voltage Peak Reverse: 1000V
  • Voltage Forward @ If: 1.1V
  • Popularity: Medium
  • Supply and Demand Status: Limited
