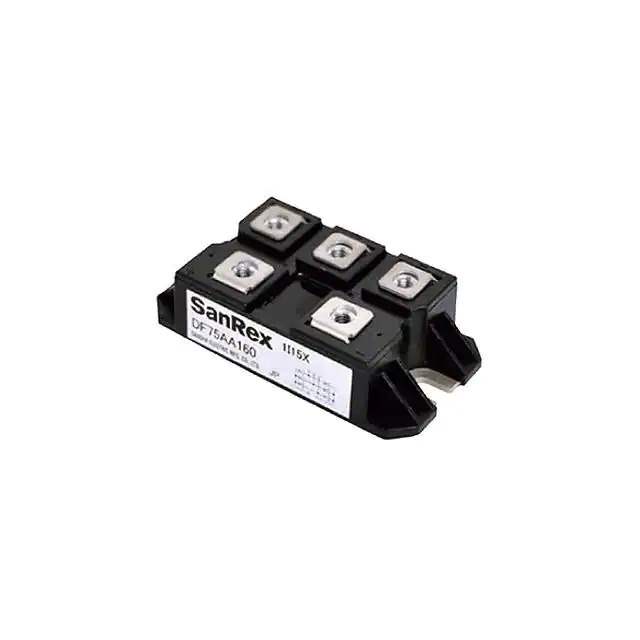

DF100AA160 Real Image
Same model may have multiple batches, images only for reference.

DF100AA160

Part No DF100AA160
Manufacturer SanRex Corporation
Catalog Bridge Rectifiers
Description DIODE MODULE 1600V 100A
Datasheet
DF100AA160 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SanRex Corporation
Package Tray
Product Status Active
Diode Type Three Phase
Technology Standard
Voltage - Peak Reverse (Max) 1.6 kV
Current - Average Rectified (Io) 100 A
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 100 A
Current - Reverse Leakage @ Vr 15 mA @ 1600 V
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 584386-DF100AA160
Ultra Librarian 3D Model Ultra Librarian DF100AA160 CAD Model

Description

The 584386-DF100AA160 is a three-phase bridge rectifier designed for use in discrete semiconductor applications. SanRex Corporation manufactures it.

  • Category: Diodes
  • Technology: Standard
  • Average Rectified Current: 100A
  • Maximum Forward Voltage: 1.2V @ 100A
  • Reverse Leakage Current: 15mA @ 1600V
  • Peak Reverse Voltage: 1.6kV
  • Mounting Type: Chassis Mount
  • Package: Module
  • Operating Temperature: -40°C to 150°C
  • Lifecycle Status: Active
