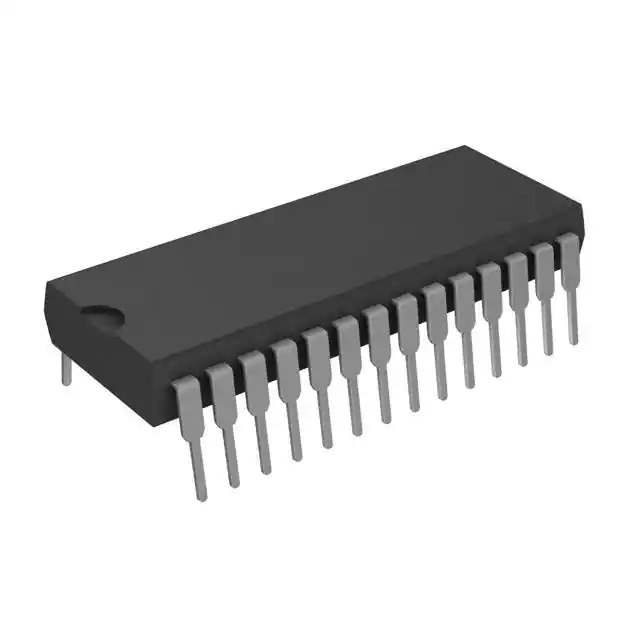

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Analog Switches - Special Purpose
Mfr Vishay
Package Tube
Product Status Obsolete
Applications Ultrasound, Video
Number of Channels 2
On-State Resistance (Max) 90Ohm
Voltage - Supply, Single (V+) 10V ~ 21V
-3db Bandwidth 500MHz
Features T-Switch Configuration
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Through Hole
Package / Case 28-DIP (0.600", 15.24mm)
Supplier Device Package 28-PDIP
Base Product Number DG538
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 584947-DG538ADJ
Ultra Librarian 3D Model Ultra Librarian DG538ADJ CAD Model

Description

The DG538ADJ is a T-Switch Configuration analog switch in a 28-DIP package.

  • Applications: It is suitable for applications in ultrasound and video systems.
  • On-State Resistance: This product features a maximum on-state resistance of 90Ohm.
  • Bandwidth: a -3db bandwidth of 500MHz, ensuring high-performance signal switching.
  • Voltage Supply: The voltage supply range is 10V to 21V for single supply.
  • Mounting: The DG538ADJ is through-hole mountable.
  • Operating Temperature: operates in a temperature range of -40°C to 85°C.
  • Status: It is an obsolete product from Vishay, a trusted manufacturer of electronic components.
