Products specifications

Category Capacitors - Film Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series MKP338 2
Package Bulk
Product Status Active
Capacitance 1 µF
Tolerance ±20%
Voltage Rating - AC 310V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 1.024" L x 0.394" W (26.00mm x 10.00mm)
Height - Seated (Max) 0.768" (19.50mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications EMI, RFI Suppression
Ratings X2
Features -
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0010
Win Source Part Number 1360519-BFC233820105
Ultra Librarian 3D Model Ultra Librarian BFC233820105 CAD Model

Description

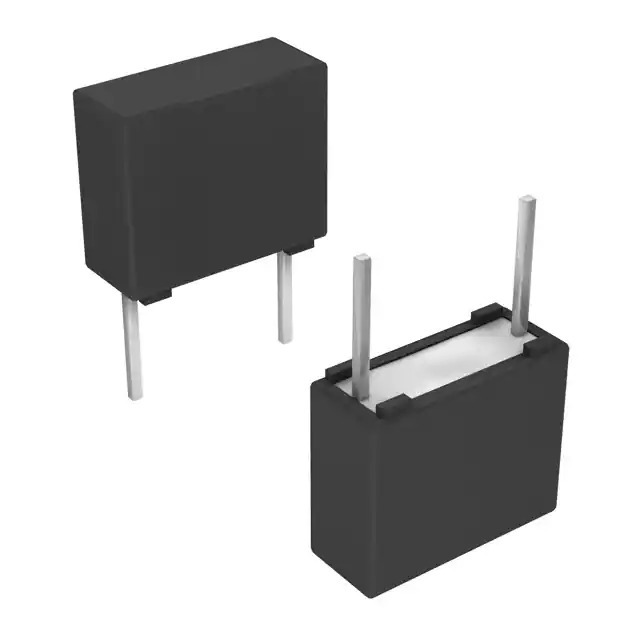

The BFC233820105 is a film capacitor from Vishay Beyschlag/Draloric/BC Components.

  • Capacitance: 1µF
  • Voltage Rating (AC): 630V
  • Voltage Rating (DC): 310V
  • Tolerance: ±20%
  • Application: X2 (EMI and RFI Suppression)
  • Mounting Type: Through Hole
  • Package: Radial
  • Lead Spacing: 22.50mm
  • Dimensions: 26.00mm x 10.00mm x 19.50mm
