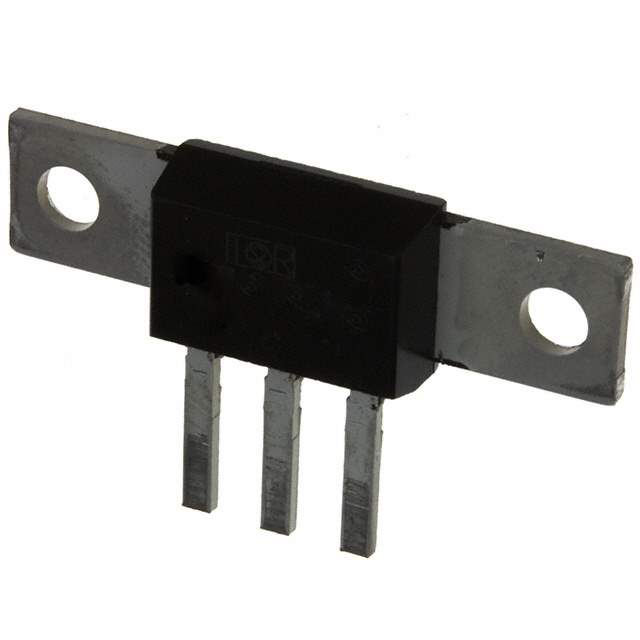

80CNQ045APBF Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Bulk
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 45V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Max) @ If 520mV @ 40A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 5mA @ 45V
Operating Temperature - Junction -55°C to 150°C
Mounting Chassis Mount
Case / Package D-61-8
Win Source Part Number 198308-80CNQ045APBF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 80CNQ045APBF CAD Model

Description

Designed for superior performance in energy systems, the 80CNQ045APBF diode module functions impeccably across various voltage and temperature ranges.

  • Switch-mode power supplies
  • Photovoltaic converters
  • High-frequency rectification
  • Power factor correction

Features and Benefits

  • Optimized for reduced forward voltage and power loss.
  • Features high surge capability to handle demanding conditions.
  • Durable under different environmental circumstances, ensuring consistent performance.

The 80CNQ045APBF offers a sophisticated yet resilient option for those tasked with the design of robust electronic systems.
