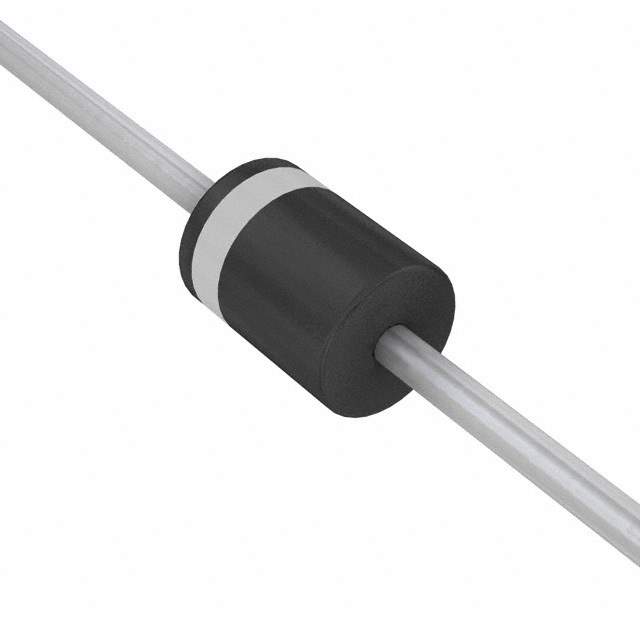

5KP22A-E3/54 Real Image
Same model may have multiple batches, images only for reference.

5KP22A-E3/54

Part No 5KP22A-E3/54
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 22VWM 35.5VC P600
Datasheet
5KP22A-E3/54 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 22V
Minimum Breakdown Voltage 24.4V
Max Clamping Voltage 35.5V
Peak Pulse Current(Ippm) 141A
Power Dissipation - Pd 5000W (5kW)
Applications General Purpose
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting Through Hole
Case / Package P600
Win Source Part Number 1006372-5KP22A-E3/54
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5KP22A-E3/54 CAD Model

Description

The Vishay 5KP22A-E3/54 is a Zener diode with a voltage rating of 22V and a peak pulse current of 141A.

  • Product: Zener Diode
  • Manufacturer: Vishay
  • Voltage Rating: 22V
  • Peak Pulse Current: 141A
  • Maximum Clamping Voltage: 35.5V
  • Application: General Purpose
  • Package: P600 Through-Hole
  • Operating Temperature Range: -55°C to 175°C
  • REACH: Unaffected
  • ECCN: EAR99
