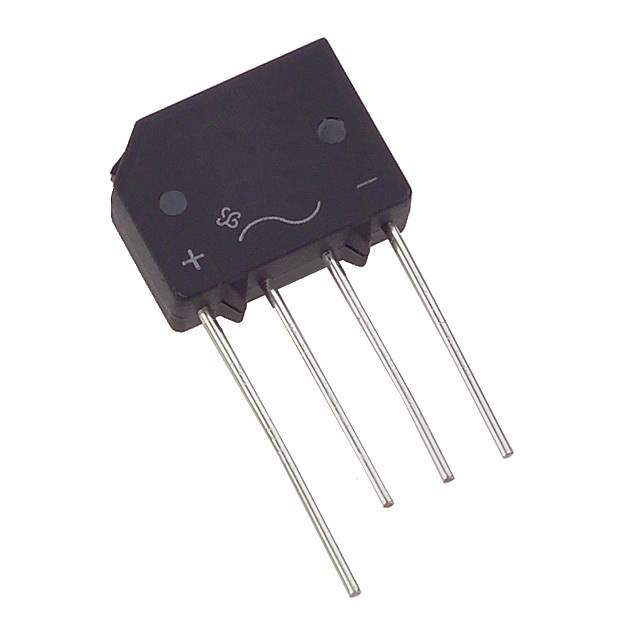

2KBP08M-E4/45 Real Image 2KBP08M-E4/45 Real Image
Same model may have multiple batches, images only for reference.
2KBP08M-E4/45 Real Image 2KBP08M-E4/45 Real Image
2KBP08M-E4/45 Real Image 2KBP08M-E4/45 Real Image
Same model may have multiple batches, images only for reference.

2KBP08M-E4/45

Part No 2KBP08M-E4/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 800V 2A KBPM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Status Obsolete
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 800V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Maximum) at If 1.1V at 3.14A
Current - Reverse Leakage at Vr 5μA at 800V
Temperature Range - Operating -55°C ~ 165°C
Mounting Style Through Hole
Manufacturer Package 4-SIP, KBPM
Supplier Device Package KBPM
Family Part Number 2KBP08
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Win Source Part Number 709105-2KBP08M-E4/45
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2KBP08M-E4/45 CAD Model

Description

The Vishay Semiconductor Diodes Division 2KBP08M-E4/45 is a single-phase standard diode with a peak reverse voltage of 800V and an average rectified current of 2A.

  • Peak Reverse Voltage: 800V
  • Average Rectified Current: 2A
  • Package: Through-hole 4-SIP KBPM
  • Operating Temperature Range: -55°C to 165°C
  • Alternative Parts: KBP10G, 2KBP08M-E4/45, and KBP156G C2
