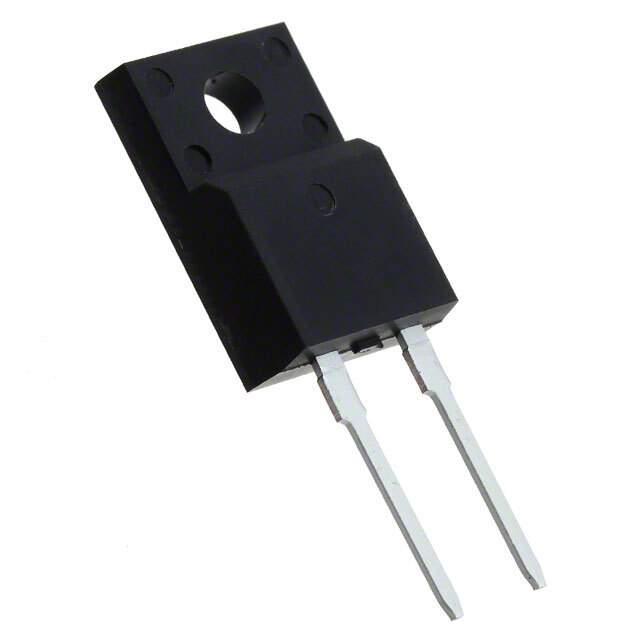

SCS306AMC Real Image
Same model may have multiple batches, images only for reference.

SCS306AMC

Part No SCS306AMC
Manufacturer Rohm Semiconductor
Catalog Diodes, Rectifiers - Single
Datasheet
SCS306AMC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Rohm Semiconductor
Package Tube
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 650 V
Current - Average Rectified (Io) 6A (DC)
Voltage - Forward (Vf) (Max) @ If 1.5 V @ 6 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 30 µA @ 650 V
Capacitance @ Vr, F 300pF @ 1V, 1MHz
Mounting Type Through Hole
Package / Case TO-220-2 Full Pack
Supplier Device Package TO-220FM
Operating Temperature - Junction 175°C (Max)
Base Product Number SCS306
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1282187-SCS306AMC
Ultra Librarian 3D Model Ultra Librarian SCS306AMC CAD Model

Description

The SCS306AMC is a silicon carbide Schottky diode designed by Rohm Semiconductor.

  • Maximum Voltage: DC Reverse (Vr) (Max): 650 V
  • Current: Average Rectified (Io): 6A (DC)
  • Voltage - Forward (Vf) (Max) @ If: 1.5 V @ 6 A
  • Reverse Recovery Time (trr): 0 ns
  • Current - Reverse Leakage @ Vr: 30 µA @ 650 V
  • Capacitance @ Vr, F: 300pF @ 1V, 1MHz
  • Speed: No recovery time > 500mA (Io)
  • Package: TO-220-2 Full Pack
  • Mounting: Through-hole
