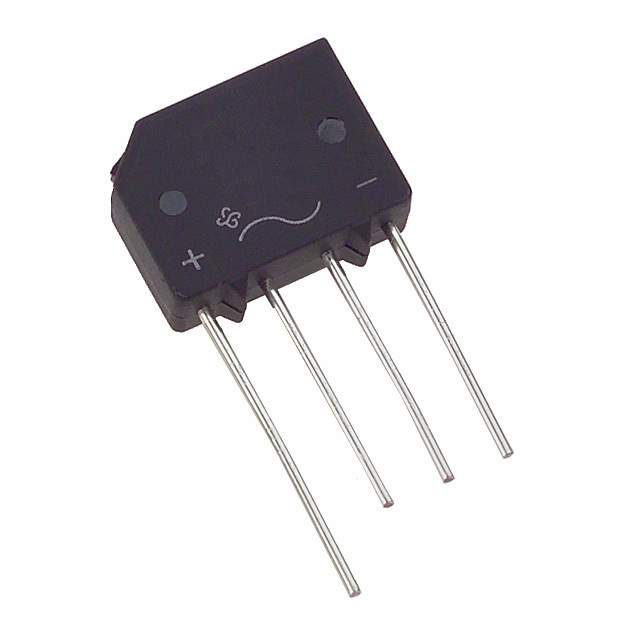

2KBP04M-E4/45 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features Bridge Rectifier Single Phase Standard 400 V Through Hole KBPM
Manufacturer Vishay
Package Tube
Part Status Obsolete
Operating Temperature Range -55°C ~ 165°C (TJ)
Mounting Through Hole
Package 4-SIP, KBPM
Case / Package KBPM
Family Name 2KBP04
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 2KBP04ME445, 2KBP04M-E4/45GI, 2KBP04M-E4/45-ND
Quantity per package 30
Popularity High
Supply and Demand Status Balance
Win Source Part Number 906237-2KBP04M-E4/45
Ultra Librarian 3D Model Ultra Librarian 2KBP04M-E4/45 CAD Model

Description

The 2KBP04M-E4/45 by Vishay is a Bridge Rectifier that belongs to the Discrete Semiconductor Products category of electronic components.

  • Type: single-phase standard
  • Voltage: 400 V
  • Mounting Type: through-hole
  • Package: 4-SIP, KBPM
  • Operating Temperature Range: -55°C to 165°C (TJ)
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Supply and Demand: balanced
  • Package Quantity: 30
