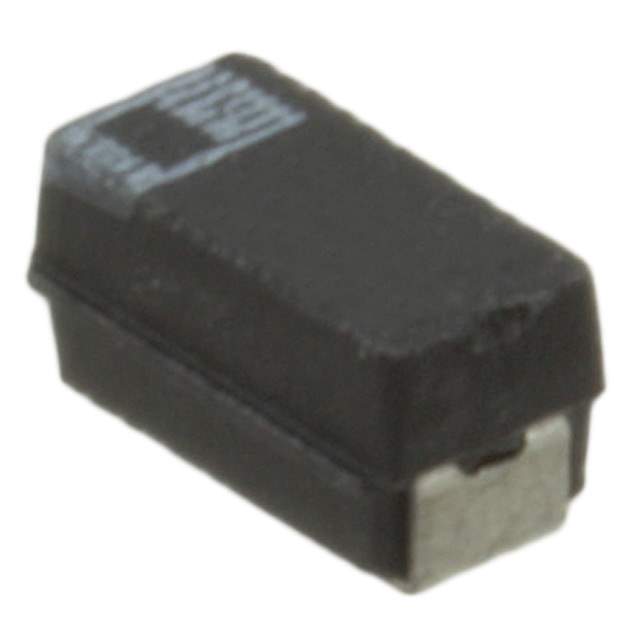

Products specifications

Categories Capacitors
Manufacturer Vishay
Packaging Reel - TR
Status Active
Capacitance 2.2μF
Tolerance ±20%
Voltage Rating 10V
Type Molded
ESR 6.3 Ohm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.071" (1.80mm)
Manufacturer Size Code A
Features General Purpose
Win Source Part Number 100681-293D225X0010A2TE3
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 293D225X0010A2TE3 CAD Model

Description

Description

The 293D225X0010A2TE3 offers a capacitance of 2.2μF and is rated for 10V. This tantalum capacitor is designed for use in circuits that demand low equivalent series resistance and reliable performance over time.

Features and Benefits

  • Capacitance: 2.2μF
  • Voltage Rating: 10V
  • Low ESR for high-frequency applications
  • Reliable performance in extended temperatures
  • Compact and lightweight

Applications

  • Switching power supplies
  • DC-DC converters
  • Audio frequency coupling networks
  • Medical equipment and instrumentation
