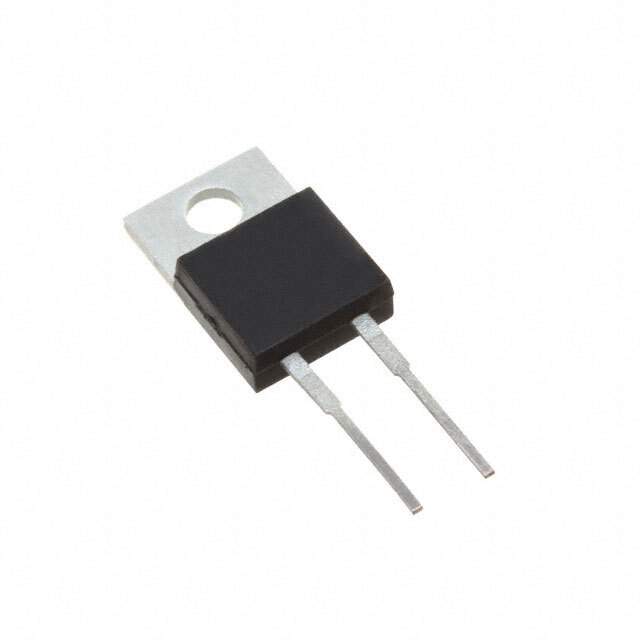

The 20ETF10PBF is a fast recovery rectifier diode manufactured by Vishay. It is designed for high-frequency applications where a rapid switching response is crucial. This diode is commonly used in power supplies, inverters, and other circuits that require efficient rectification.
Applications:
- Switch-mode power supplies (SMPS)
- Uninterruptible power supplies (UPS)
- Welding equipment
- Motor drives
- Power inverters
Features:
- Fast recovery time
- High surge current capability
- Low forward voltage drop
- High operating junction temperature
- RoHS compliant and lead-free
Benefits:
- Reduces switching losses and improves efficiency in high-frequency circuits.
- Provides reliable performance under transient conditions.
- Minimizes power dissipation and enhances overall system efficiency.
- Enables operation in demanding thermal environments.
- Complies with environmental regulations.
Technical Specifications:
- Repetitive Peak Reverse Voltage (VRRM): 1000 V
- Average Forward Current (IF(AV)): 20 A
- Peak Forward Surge Current (IFSM): 200 A
- Forward Voltage (VF): 1.3 V (typical)
- Reverse Recovery Time (trr): 75 ns (typical)
- Operating Junction Temperature (TJ): -40°C to +150°C
- Package: TO-220AC
The 20ETF10PBF is housed in a TO-220AC package, which provides good thermal performance. The fast recovery time is particularly important in high-frequency switching applications, as it minimizes losses and improves the overall efficiency of the circuit. The high surge current capability ensures that the diode can withstand transient current spikes without damage. This diode is suitable for use in a wide range of industrial and commercial applications.
