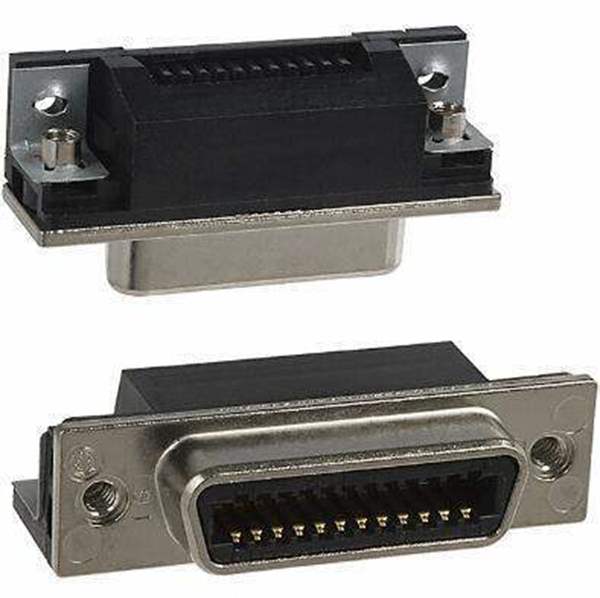

5553811-1TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects D-Sub, D-Shaped Connectors Centronics Connectors
Package Tray
Product Status Active
Connector Style Outer Shroud Contacts
Mounting Type Panel Mount, Through Hole, Right Angle
Flange Feature Housing/Shell (6-32)
Features Shielded
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Win Source Part Number WS1209380-5553811-1
Ultra Librarian 3D Model Ultra Librarian 5553811-1 CAD Model

Description

24 Position Receptacle Connector Panel Mount, Through Hole, Right Angle Solder
