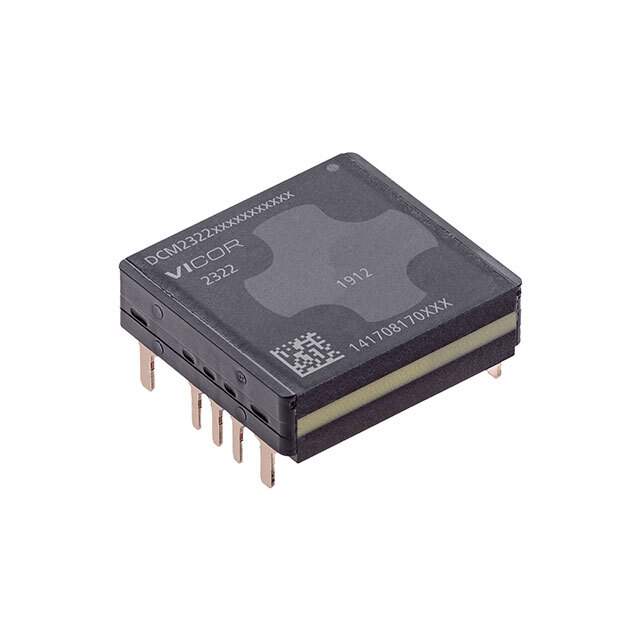

DCM2322T72S53A0T60 Real Image
Same model may have multiple batches, images only for reference.

DCM2322T72S53A0T60

Part No DCM2322T72S53A0T60
Manufacturer Vicor Corporation
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 48V 100W / Isolated Module DC DC Converter 1 Output 48V 2.08A 14V - 72V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Vicor Corporation
Series VI Chip® DCM®
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 14V
Voltage - Input (Max) 72V
Voltage - Output 1 48V
Current - Output (Max) 2.08A
Power (Watts) 100 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features Adjustable Output
Temperature Range - Operating -40°C ~ 125°C
Efficiency 93%
Mounting Type Through Hole
Package / Case 9-DIP Module
Size / Dimension 0.98" L x 0.90" W x 0.28" H (24.8mm x 22.8mm x 7.2mm)
Approval Agency CE, cTUVus, cURus
Base Product Number DCM2322
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1348575-DCM2322T72S53A0T60
Ultra Librarian 3D Model Ultra Librarian DCM2322T72S53A0T60 CAD Model

Description

The DCM2322T72S53A0T60 is an isolated module type DC-DC converter from the VI Chip® DCM® series.

  • Manufacturer: (Missing)
  • Type: Isolated Module DC-DC Converter
  • Series: VI Chip® DCM®
  • Output: Adjustable
  • Power: 100 Watts
  • Voltage Isolation: 3 kV
  • Number of Outputs: Single
  • Maximum Output Current: 2.08A
  • Input Voltage Range: 14V to 72V
  • Output Voltage: 48V
  • Efficiency: 93%
  • Application: ITE (Commercial)
  • Mounting Type: Through Hole
  • Package: 9-DIP Module
  • Approvals: CE, cTUVus, cURus
