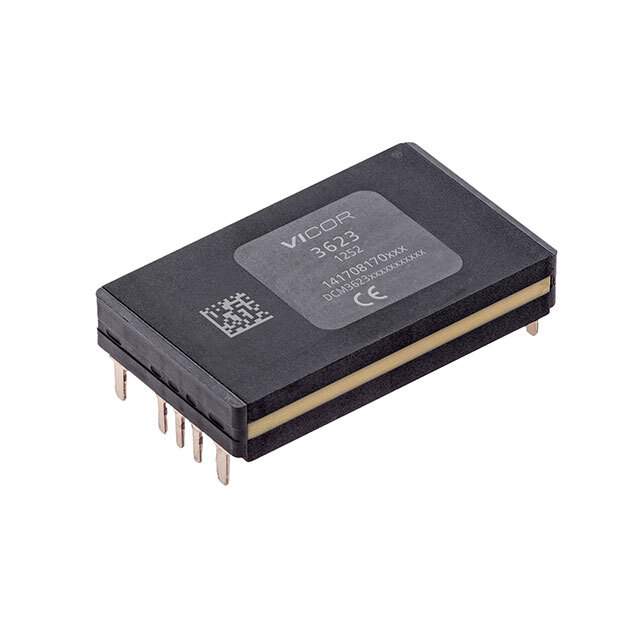

DCM3623T50M31C2T00 Real Image
Same model may have multiple batches, images only for reference.

DCM3623T50M31C2T00

Part No DCM3623T50M31C2T00
Manufacturer Vicor Corporation
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 28V 320W / Isolated Module DC DC Converter 1 Output 28V 11.5A 16V - 50V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Vicor Corporation
Series VI Chip® DCM® (320W)
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 16V
Voltage - Input (Max) 50V
Voltage - Output 1 28V
Current - Output (Max) 11.5A
Power (Watts) 320 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 125°C (With Derating)
Efficiency 93.6%
Mounting Type Through Hole
Package / Case 9-DIP Module
Size / Dimension 1.52" L x 0.90" W x 0.29" H (38.7mm x 22.8mm x 7.3mm)
Base Product Number DCM3623
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1337699-DCM3623T50M31C2T00
Ultra Librarian 3D Model Ultra Librarian DCM3623T50M31C2T00 CAD Model

Description

The Vicor Corporation VI Chip® DCM® (320W) 1337699-DCM3623T50M31C2T00 is an isolated module type DC-DC converter with a power of 320W and a voltage isolation of 2.25 kV.

  • Power: 320W
  • Voltage Isolation: 2.25 kV
  • Output: Single
  • Maximum Current Output: 11.5A
  • Voltage Output: 28V
  • Efficiency: 93.6%
  • Package: Tray
  • Standard Package: 25
  • ECCN: EAR99
  • MSL: 1 (unlimited)
  • REACH: Unaffected
  • HTSUS: 8504.40.9580
  • Base Product Number: DCM3623
  • Application: ITE (Commercial)
  • Operating Temperature: -40°C to 125°C (with derating)
