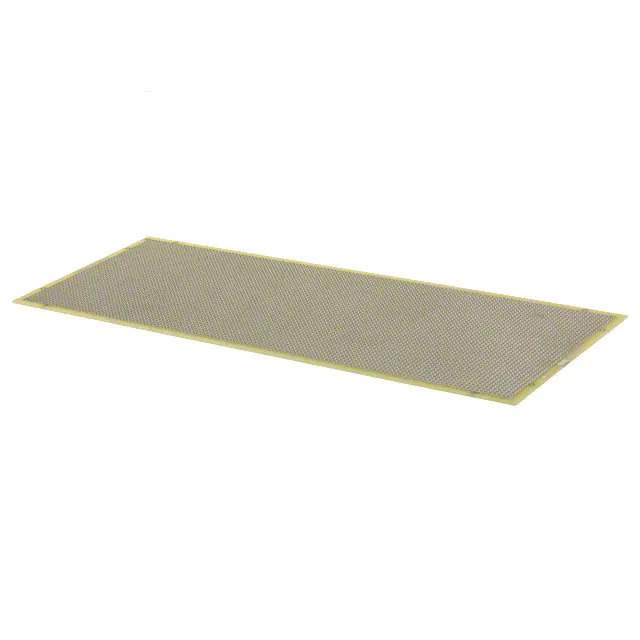

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Prototyping, Fabrication Products - Prototype Boards Perforated
Mfr Vector Electronics
Series Vectorbord® Circbord™
Package Bulk
Product Status Active
Proto Board Type Breadboard, General Purpose
Plating Plated Through Hole (PTH)
Pitch 0.100" (2.54mm)
Circuit Pattern Pad Per Hole (Round)
Hole Diameter 0.042" (1.07mm)
Size / Dimension 13.25" L x 5.00" W (336.6mm x 127.0mm)
Board Thickness 0.062" (1.57mm) 1/16"
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.8585
Win Source Part Number 551122-8006
Ultra Librarian 3D Model Ultra Librarian 8006 CAD Model

Description

The 551122-8006 is a perforated prototype board from the Vectorbord® Circbord™ series manufactured by Vector Electronics.

  • Pitch: 0.100" (2.54mm)
  • Size: 13.25" L x 5.00" W (336.6mm x 127.0mm)
  • Type: Plated Through Hole (PTH)
  • Hole Diameter: 0.042" (1.07mm)
  • Board Thickness: 0.062" (1.57mm)
  • Product Status: Active
