Same model may have multiple batches, images only for reference.

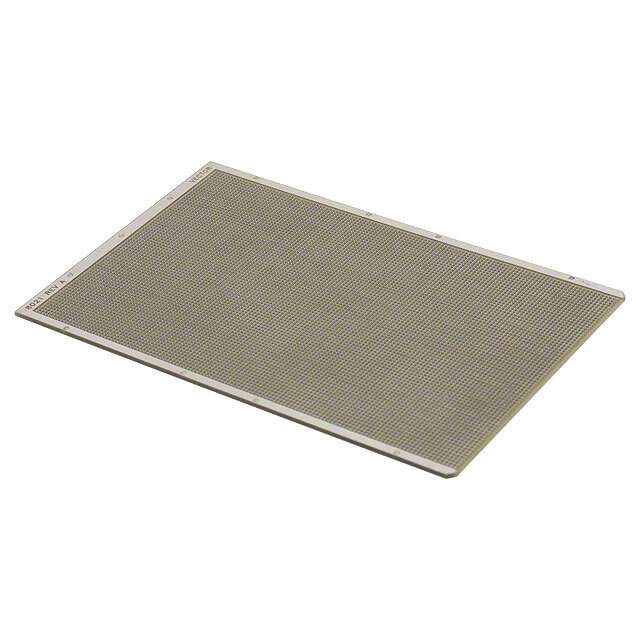

8021 Real Image
Same model may have multiple batches, images only for reference.

8021

Part No 8021
Manufacturer Vector Electronics
Catalog Misc Products
Description BREADBOARD GENERAL PURPOSE PTH
Datasheet
8021 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Prototyping, Fabrication Products - Prototype Boards Perforated
Mfr Vector Electronics
Series Vectorbord® Circbord™
Package Bulk
Product Status Active
Proto Board Type Breadboard, General Purpose
Plating Plated Through Hole (PTH)
Pitch 0.050" (1.27mm)
Circuit Pattern Pad Per Hole (Round)
Hole Diameter 0.024" (0.61mm)
Size / Dimension 6.30" L x 3.94" W (160.0mm x 100.1mm)
Board Thickness 0.062" (1.57mm) 1/16"
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.8585
Win Source Part Number 858317-8021
Ultra Librarian 3D Model Ultra Librarian 8021 CAD Model

Description

The Vectorbord® Circbord™ prototype board is an ideal choice for prototyping and fabrication projects.

  • Pitch: 0.050" (1.27mm)
  • Hole Type: Plated Through Holes (PTH)
  • Hole Diameter: 0.024" (0.61mm)
  • Board Thickness: 0.062" (1.57mm)
  • Size / Dimension: 6.30" L x 3.94" W (160.0mm x 100.1mm)
  • Material: High-Quality Material
  • Packaging: Bulk
  • Pieces Per Package: 1 piece
  • Application: Breadboard and General Purpose
