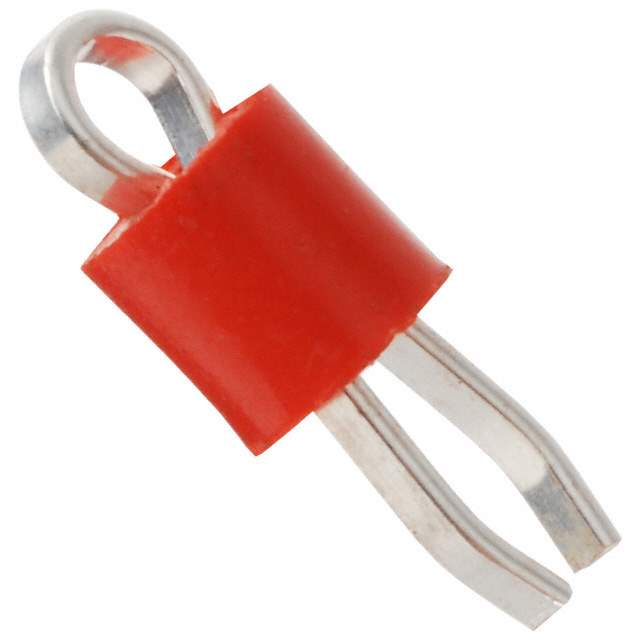

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Test and Measurement - Test Points
Mfr Keystone Electronics
Series THM
Package Bulk
Product Status Active
Type PC Test Point, Compact
Mounting Type Through Hole
Color Red
Hole Diameter 0.063" (1.60mm)
Size / Dimension 0.125" Dia x 0.220" L (3.18mm x 5.59mm)
Plating Silver
Material - Insulation Nylon 46, UL 94V-0
Material - Body Phosphor Bronze
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 546228-5005
Ultra Librarian 3D Model Ultra Librarian 5005 CAD Model

Description

The 546228-5005 is a compact PC test point used in test and measurement applications.

  • Series: THM
  • Color: Red
  • Insulation: Nylon 46 with UL 94V-0 rating
  • Size/Dimension: 0.125 inches (3.18mm) diameter, 0.220 inches (5.59mm) length
  • Plating: Silver
  • Body Material: Phosphor Bronze
  • Hole Diameter: 0.063 inches (1.60mm)
  • Mounting Type: Through-Hole
  • Manufacturer: Keystone Electronics
  • Package: 100 pieces
