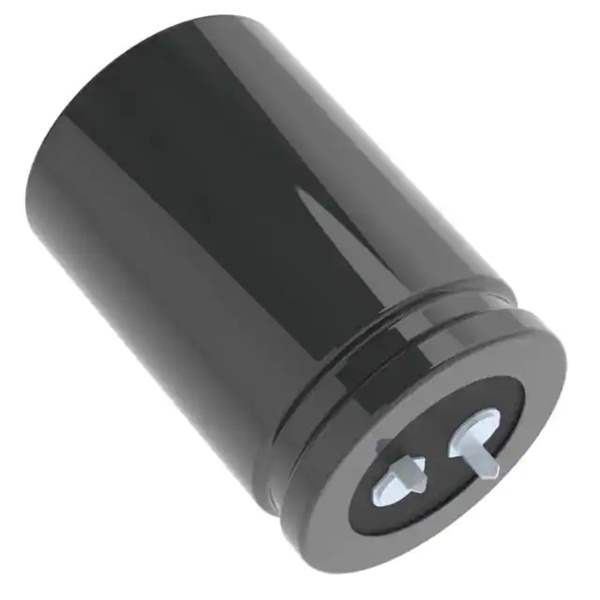

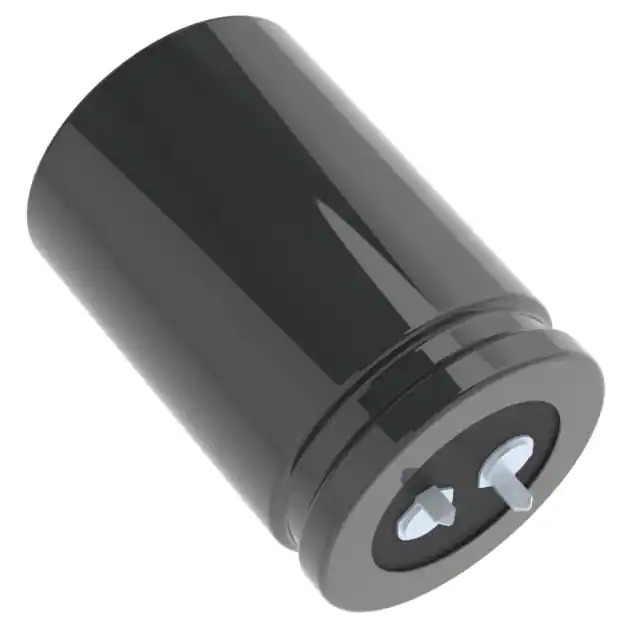

ESMH101VSN682MA50S United Chemi-Con
Same model may have multiple batches, images only for reference.

ESMH101VSN682MA50S

Part No ESMH101VSN682MA50S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 6800UF 20% 100V SNAP / 6800 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 37mOhm @ 120Hz 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series SMH
Package Bulk
Product Status Active
Capacitance 6800 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) 37mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 6.5 A @ 120 Hz
Ripple Current @ High Frequency 7.8 A @ 100 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 2.047" (52.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360805-ESMH101VSN682MA50S
Ultra Librarian 3D Model Ultra Librarian ESMH101VSN682MA50S CAD Model

Description

The SMH series aluminum electrolytic capacitor by United Chemi-Con is a reliable and high-quality component for general-purpose electronic applications.

  • Capacitance: 6800 μF
  • Voltage Rating: 100 V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 37mOhm @ 120Hz
  • Lifetime: 2000 hours @ 85°C
  • Package Type: Radial, can - snap-in
  • Mounting Type: Through-hole
  • Lead Spacing: 0.394" (10.00mm)
  • Size/Dimension: 1.378" diameter (35.00mm)
  • Height Seated: 2.047" (52.00mm)
  • REACH: Unaffected
