Same model may have multiple batches, images only for reference.

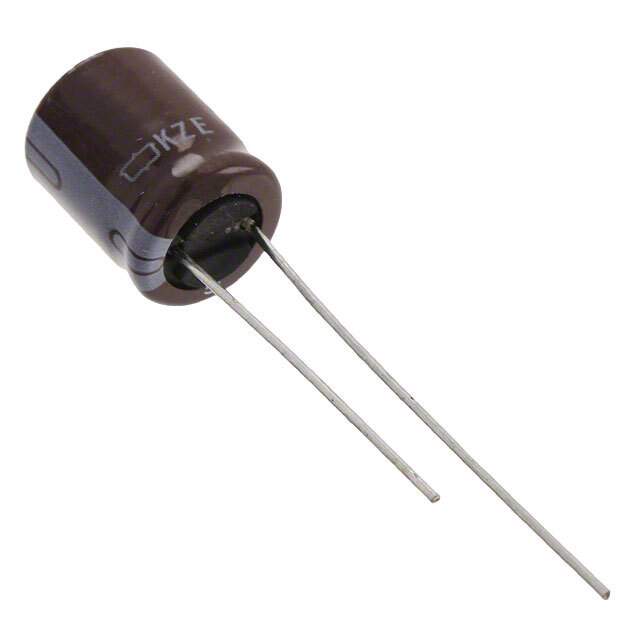

EKZE500ELL331MJ25S Real Image
Same model may have multiple batches, images only for reference.

EKZE500ELL331MJ25S

Part No EKZE500ELL331MJ25S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 50V RADIAL / Cap Aluminum Lytic 330uF 50V 20% (10 X 25mm) Radial 5mm 1870mA 4000h 105°C Bulk
Datasheet
EKZE500ELL331MJ25S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer United Chemi-Con
Series KZE
Packaging Bulk
Capacitance 330μF
Tolerance ±20%
Voltage Rating DC 50V
Lifetime @ Temp. 4000 Hrs @ 105°C
Operating Temperature Range -40°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 935mA @ 120Hz
Ripple Current - High Frequency 1.87A @ 100kHz
Impedance 28 mOhm
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Maximum) 0.984" (25.00mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 777937-EKZE500ELL331MJ25S
Popularity Medium
Supply and Demand Status Limited
Family Name KZE
Introduction Date September 07, 2008
ECCN EAR99
Country of Origin China, Indonesia, Japan, Republic of Korea, Taiwan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian EKZE500ELL331MJ25S CAD Model

Description

The United Chemi-Con capacitor is part of the KZE series and has a capacitance of 330μF with a tolerance of ±20%.

  • Voltage Rating: 50V
  • Polarization: Polar
  • Ripple Current: 935mA @ 120Hz, 1.87A @ 100kHz
  • Impedance: 28 mOhm
  • Package: Radial, Can
  • Lifetime: 4000 Hrs @ 105°C
  • Applications: General Purpose
  • Height: 0.984" (25.00mm)
  • Mounting Type: Through Hole
  • Lead Spacing: 0.197" (5.00mm)
  • Market Status: Active
  • Popularity: Medium
