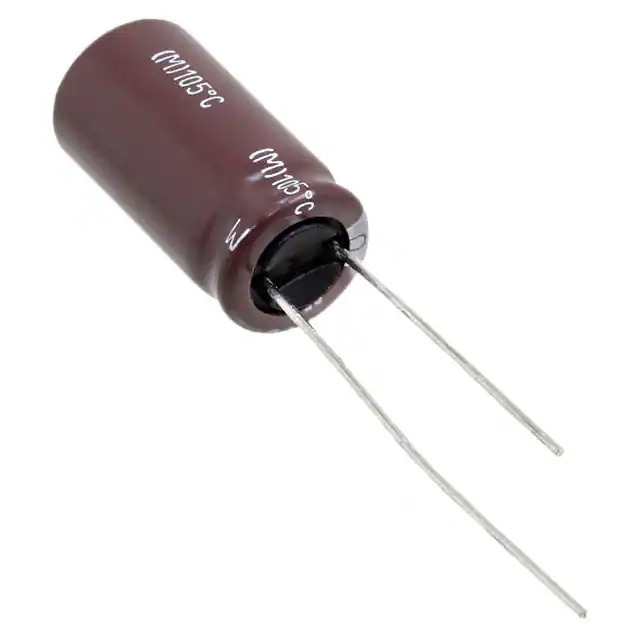

EKYB800ELL181MJ20S United Chemi-Con
Same model may have multiple batches, images only for reference.

EKYB800ELL181MJ20S

Part No EKYB800ELL181MJ20S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 180UF 20% 80V RADIAL / 180 µF 80 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KYB
Package Bulk
Product Status Active
Capacitance 180 µF
Tolerance ±20%
Voltage - Rated 80 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 416 mA @ 120 Hz
Ripple Current @ High Frequency 1.04 A @ 100 kHz
Impedance 75 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.846" (21.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357947-EKYB800ELL181MJ20S
Ultra Librarian 3D Model Ultra Librarian EKYB800ELL181MJ20S CAD Model

Description

The 1357947-EKYB800ELL181MJ20S is an aluminum electrolytic capacitor manufactured by United Chemi-Con.

  • Series: KYB
  • Application: General-purpose
  • Capacitance: 180 µF
  • Voltage Rating: 80 V
  • Operating Temperatures: -40°C to 105°C
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 416 mA @ 120 Hz
  • Ripple Current (High Frequency): 1.04 A @ 100 kHz
  • Package: Radial, can
  • Mounting Type: Through-hole
  • Lifetime: 10000 hours @ 105°C
  • Size: 0.394" diameter and a height of 0.846"
  • Status: Active product
  • REACH: Unaffected
