Product Overview: ADL5320ARKZ-R7

The ADL5320ARKZ-R7 is a state-of-the-art RF/IF gain block amplifier designed and manufactured by Analog Devices Inc., an industry leader in high-performance analog technology. This device is part of their extensive portfolio of RF amplifiers and is designed to provide consistent, reliable performance across a wide range of applications including wireless infrastructure, broadband, and instrumentation.

Key Features

• Frequency Range: The ADL5320 operates over a broad frequency range, making it highly versatile for various RF applications.
• High Linearity: It exhibits excellent linearity, which is crucial for maintaining signal fidelity and reducing distortion in communication systems.
• Single Power Supply: The device operates from a single power supply, simplifying the power supply design and reducing the overall system complexity.
• Integrated Active Bias: The ADL5320 features an integrated active bias circuit that ensures stable performance over temperature and process variations.

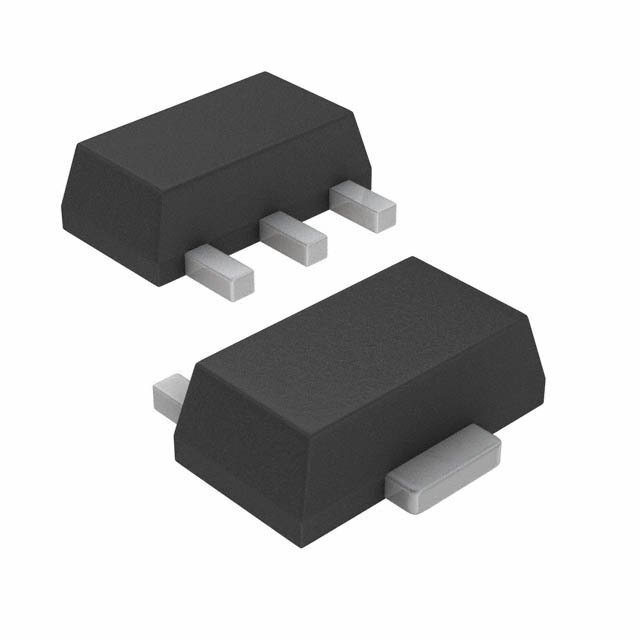

• Robust Packaging: Housed in a compact package, the ADL5320ARKZ-R7 is designed for space-constrained applications while providing robustness and reliability.

Applications

The ADL5320ARKZ-R7 is ideally suited for a variety of applications where a high-performance RF/IF gain block is required, including:

• Wireless infrastructure (base stations, repeaters)
• RF/IF gain blocks in broadband communication systems
• Test equipment and instrumentation
• General-purpose RF amplification

Quality and Reliability

Analog Devices Inc. is renowned for its commitment to quality and reliability, and the ADL5320ARKZ-R7 is no exception. It is built to meet the stringent requirements of the most demanding RF applications, ensuring a long operational lifespan and consistent performance.

Product Availability

The ADL5320ARKZ-R7 is available in reel packaging, denoted by the suffix "-R7", which facilitates easy integration into automated manufacturing processes, reducing assembly time and cost.

For detailed technical specifications, application notes, and support resources, customers are encouraged to visit the official Analog Devices Inc. website or contact their local sales representative.
