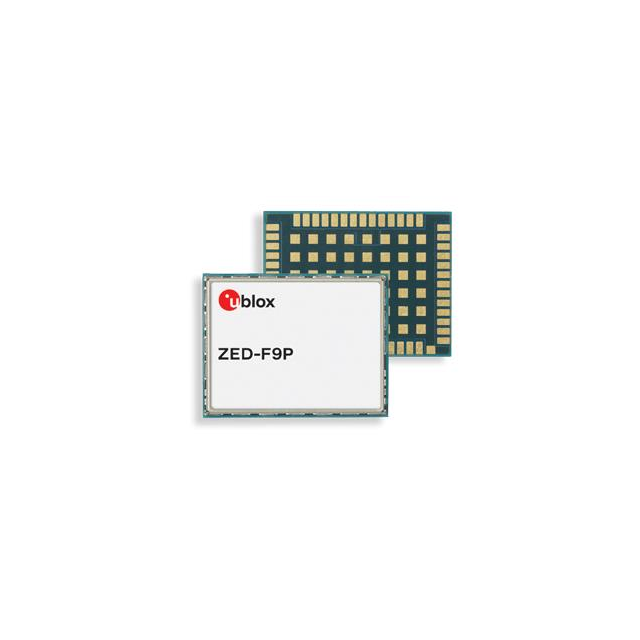

ZED-F9P-02B Real Image
Same model may have multiple batches, images only for reference.

ZED-F9P-02B

Part No ZED-F9P-02B
Manufacturer U-blox
Catalog RF Receivers
Description MOD RF RECEIVER GNSS 54LGA / series RF Receiver BeiDou, Galileo, GLONASS, GNSS, GPS 1.2276GHz ~ 1.575GHz -167dBm 921.6kbps 54-LGA (22x17)
Datasheet
ZED-F9P-02B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Receivers
Mfr U-Blox
Series ZED-F9P
Package Cut Tape (CT),
Product Status Not For New Designs
Frequency 1.2276GHz ~ 1.575GHz
Sensitivity -167dBm
Data Rate (Max) 921.6kbps
Modulation or Protocol BeiDou, Galileo, GLONASS, GNSS, GPS
Applications General Purpose
Data Interface I2C, SPI, UART, USB
Voltage - Supply 2.7V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 54-SMD Module
Supplier Device Package 54-LGA (22x17)
Base Product Number ZED-F9
Other Names 672-ZED-F9P-02BTR,672-ZED-F9P-02BDKR,672-ZED-F9P-02BCT
Standard Package 250
MSL Level 4 (72 Hours)
ECCN 7A994
HTSUS 8529.10.9100
Win Source Part Number 1235890-ZED-F9P-02B
Ultra Librarian 3D Model Ultra Librarian ZED-F9P-02B CAD Model

Description

The ZED-F9P RF Receiver is a high-performance receiver that operates in the frequency range of 1.2276GHz to 1.575GHz.

  • Frequency Range: 1.2276GHz to 1.575GHz
  • Application: general-purpose applications
  • Package: 54-SMD module
  • Data Interfaces: I2C, SPI, UART, and USB
  • Sensitivity: -167dBm
  • Maximum Data Rate: 921.6kbps
  • Modulations and Protocols: BeiDou, Galileo, GLONASS, GNSS, and GPS
  • Voltage Supply: 2.7V to 3.6V
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: U-Blox
  • Status: Not recommended for new designs
